What's the formula to calculate Avf in this circuit?
时间:04-10
整理:3721RD
点击:

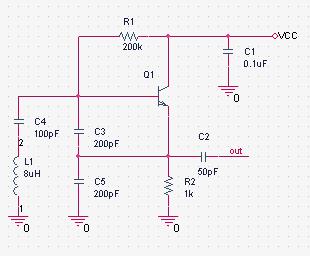

Here is the circuit:
Please help me to suggest the formula to calculate Avf parameter in this circuit?
Best regard! Any ideas would be great!

Please help me to suggest the formula to calculate Avf parameter in this circuit?
Best regard! Any ideas would be great!
Hi,
What do you mean on Avf? Sorry but you need to clarify it for me.
Avf mean voltage gain with feedback.
By inspection, the AVf = 0, since no input connector.
Alternatively, one might argue that the AVf = infinity, since it might oscillate at turn on at the L1 C4 resonant frequency.
