3 cross-coupled VCOs
时间：04-09
整理：3721RD
点击：

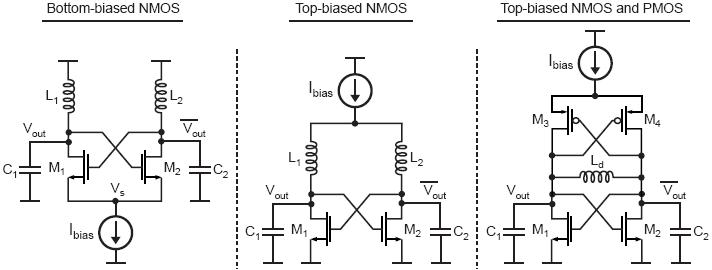

what is the difference between the 3 VCOs above.
I mean which one has a greater output amplitude(swing)? and why?
which one has larger tunning range and why?
which one is better in noise performance and power supply insensitivity?
if you introduce me some papers or books, that have a complete description of this VCOs, it is appreciated
thank you
