What that besides a transistor?
时间:04-09
整理:3721RD
点击:

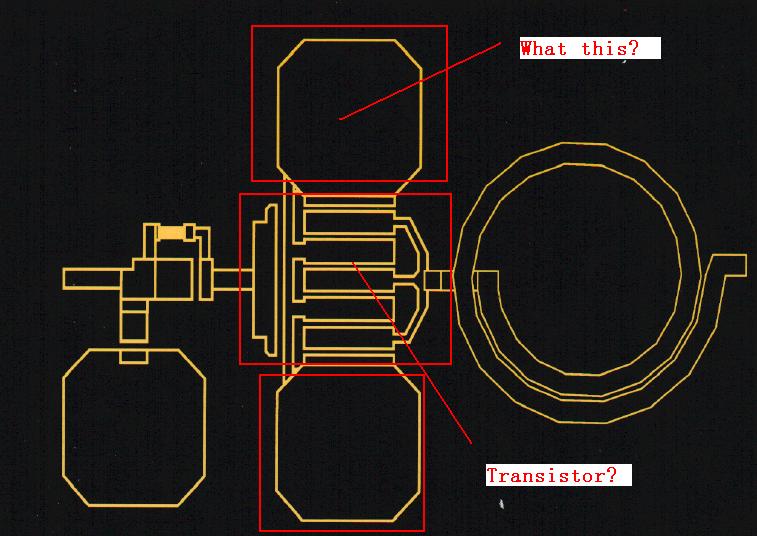

What this besides a transistor? I see it in many MMIC layout ,but I dont know what that.
-CQCQ
-CQCQ

probably a heatsink
eda
From its connection to the transistor I would guess ground contacts. However, these 'wings" are too large for ground contacts.
It is a FET, and those are the two Drain connections. Under the pads are ground connections to the backside of the chip.
Those are drain vias.
I think Drain
