Help me ~ Finding LTCC capacitor's equivalent circuit
时间:04-08
整理:3721RD
点击:
Capacitor structure is below.

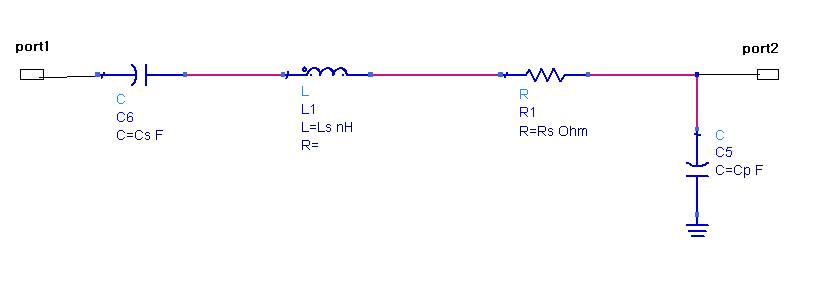

I thought equivalent circuit like this circuit.
I don"t know exactly that the equivalent circuit is right.
so plz tell me what is problem~^^

I thought equivalent circuit like this circuit.

I don"t know exactly that the equivalent circuit is right.
so plz tell me what is problem~^^
This model makes sense, if the capacitor is small compared to the wavelength.
