关于modelsim和matlab协仿真的问题,用的是verilog语言。
时间:10-02
整理:3721RD
点击:
问题:用vhdl语言和Verilog语言和matlab协仿真同一个程序,在modelsim上跑出来的结果不一样。导致时序有问题。网上查了很多资料没有结果。(调用的.m函数一样即输入信号一样)。
例子: 带使能信号和复位信号的加法器,由matlab给输入数据addin,en。

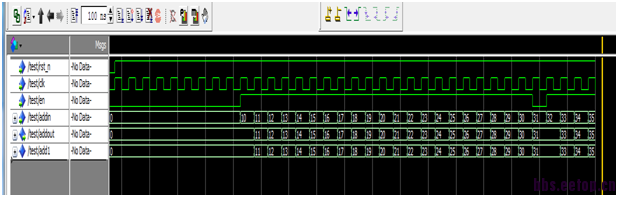

错误: VHDL仿真结果貌似是正确的,但是verilog语言仿真的结果addout应该延时输入的addin一个clk,为什么没有延时呢。!
1. VHDL语言:
LIBRARY ieee;
USE ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;
entity test is
port
(
rst_n : in std_logic;
clk : in std_logic;
en : in std_logic;
addin : in std_logic_vector(11 downto 0);
addout : out std_logic_vector (11 downto 0)
);
END test;
architecture rtl of test is
signal add1 : std_logic_vector(11 downto 0);
begin
process(clk,rst_n)
begin
if rst_n ='0' then
add1<=(others=>'0');
elsifclk'event and clk = '1' then
if en = '1' then
add1<=addin+'1';
else
add1<=add1;
endif;
end if;
end process;
addout<=add1;
end architecture;
2. Verilog语言
module test (clk,
rst_n,
addin,
en,
addout
);
input clk;
input rst_n;
input en;
input [11:0] addin;
output [11:0] addout;
reg [11:0] add1;
assign addout=add1;
always @ (posedge clk)
begin
if (!rst_n)
begin
add1=12'h0;
end
else if(en)
begin
add1=addin+1;
end
end
endmodule

例子: 带使能信号和复位信号的加法器,由matlab给输入数据addin,en。
错误: VHDL仿真结果貌似是正确的,但是verilog语言仿真的结果addout应该延时输入的addin一个clk,为什么没有延时呢。!
1. VHDL语言:
LIBRARY ieee;
USE ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;
entity test is
port
(
rst_n : in std_logic;
clk : in std_logic;
en : in std_logic;
addin : in std_logic_vector(11 downto 0);
addout : out std_logic_vector (11 downto 0)
);
END test;
architecture rtl of test is
signal add1 : std_logic_vector(11 downto 0);
begin
process(clk,rst_n)
begin
if rst_n ='0' then
add1<=(others=>'0');
elsifclk'event and clk = '1' then
if en = '1' then
add1<=addin+'1';
else
add1<=add1;
endif;
end if;
end process;
addout<=add1;
end architecture;
2. Verilog语言
module test (clk,
rst_n,
addin,
en,
addout
);
input clk;
input rst_n;
input en;
input [11:0] addin;
output [11:0] addout;
reg [11:0] add1;
assign addout=add1;
always @ (posedge clk)
begin
if (!rst_n)
begin
add1=12'h0;
end
else if(en)
begin
add1=addin+1;
end
end
endmodule

另外附上.m文件。即输入的激励
这是我给的m文件,即输入的激励:
function [iport,tnext] = test(oport, tnow, portinfo)
tnext=[];
iport=struct();
persistent inc;
persistent rst;
CLK_PERIOD = 1e-8;
RST_MUL_TIME = 5;
RST_TIME = RST_MUL_TIME * CLK_PERIOD;
if isempty(inc)
inc=0;
iport.addin=dec2bin(0,12);
iport.en=dec2bin(0,1);
end
inc =inc+1;
if tnow <= RST_TIME
rst = dec2bin(0, 1);
inc=[];
else
rst = dec2bin(1, 1);
end
if inc>=10
iport.addin=dec2bin(inc,12);
iport.en=dec2bin(1,1);
end
if 30==mvl2dec(oport.addout)
iport.en=dec2bin(0,1);
end
iport.rst_n=rst;
end
看一看,学一学!
xuexixuexi
非常感谢!
应该是仿真输入信号驱动时刻的原因
仿真都是clk上升沿请求.m。VHDL和verilog使用的是一样的请求函数。 不知道是不是matlab对verilog的仿真功能还没有健全。我还是不懂啊
