小弟，最近在学习aurora核，编写verilog代码。实现MAP时报错如下：
时间：10-02
整理：3721RD
点击：
Pack:1107 - Pack was unable to combine the symbols listed below into a
single IOB component because the site type selected is not compatible.
Further explanation:
The component type is determined by the types of logic and the properties and
configuration of the logic it contains. In this case an IO component of type
IOB was chosen because the IO contains symbols and/or properties consistent
with input, output, or bi-directional usage and contains no other symbols or
properties that require a more specific IO component type. Please double
check that the types of logic elements and all of their relevant properties
and configuration options are compatible with the physical site type of the
constraint.
Summary:
Symbols involved:
PAD symbol "GTPD0_P" (Pad Signal = GTPD0_P)

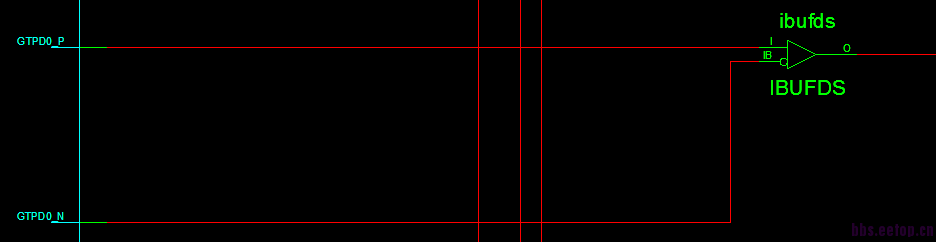

DIFFAMP symbol "IBUFDS/IBUFDS" (Output Signal = GTPD0_left_i)
Component type involved: IOB
Site Location involved: A10
Site Type involved: IPAD
Mapping completed.
See MAP report file "aurora_8b10b_v5_3_example_design_map.mrp" for details.
Problem encountered during the packing phase.
single IOB component because the site type selected is not compatible.
Further explanation:
The component type is determined by the types of logic and the properties and
configuration of the logic it contains. In this case an IO component of type
IOB was chosen because the IO contains symbols and/or properties consistent
with input, output, or bi-directional usage and contains no other symbols or
properties that require a more specific IO component type. Please double
check that the types of logic elements and all of their relevant properties
and configuration options are compatible with the physical site type of the
constraint.
Summary:
Symbols involved:
PAD symbol "GTPD0_P" (Pad Signal = GTPD0_P)
DIFFAMP symbol "IBUFDS/IBUFDS" (Output Signal = GTPD0_left_i)
Component type involved: IOB
Site Location involved: A10
Site Type involved: IPAD
Mapping completed.
See MAP report file "aurora_8b10b_v5_3_example_design_map.mrp" for details.
Problem encountered during the packing phase.
