原理图导网表问题
时间:10-02
整理:3721RD
点击:
导网表时的错误提示,请问这种情况该如何解决?
#194 ERROR(ORCAP-36001): Conflicting values of Source Part names found on R38(R_2) and R1(R_1) for part "R".
#195 ERROR(ORCAP-36001): Conflicting values of Source Part names found on R386(R_0) and R1(R_1) for part "R".
#196 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R387 and R1 for part "R".
VALUE
#197 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R388 and R1 for part "R".
PCB Footprint
VALUE
#198 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R403 and R1 for part "R".
VALUE
#199 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R48 and R1 for part "R".
VALUE
#200 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R5 and R1 for part "R".
PCB Footprint
VALUE
#201 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R51 and R1 for part "R".
PCB Footprint
VALUE

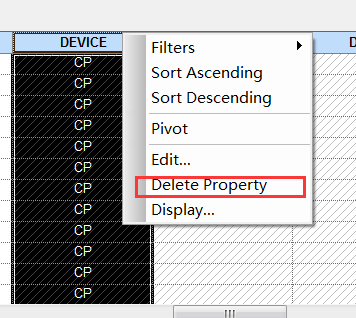

我在网上看到有人说去掉device属性是可以的,但是我删除不掉device这一栏,我是下图的操作,操作完后device属性值变成了CP、R等等

#194 ERROR(ORCAP-36001): Conflicting values of Source Part names found on R38(R_2) and R1(R_1) for part "R".
#195 ERROR(ORCAP-36001): Conflicting values of Source Part names found on R386(R_0) and R1(R_1) for part "R".
#196 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R387 and R1 for part "R".
VALUE
#197 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R388 and R1 for part "R".
PCB Footprint
VALUE
#198 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R403 and R1 for part "R".
VALUE
#199 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R48 and R1 for part "R".
VALUE
#200 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R5 and R1 for part "R".
PCB Footprint
VALUE
#201 ERROR(ORCAP-36003): Conflicting values of following Component Definition properties found on R51 and R1 for part "R".
PCB Footprint
VALUE
我在网上看到有人说去掉device属性是可以的,但是我删除不掉device这一栏,我是下图的操作,操作完后device属性值变成了CP、R等等

自己解决
REFDES重复了 改下就好了
