生成光绘的时候有警告，会不会有问题？
时间：10-02
整理：3721RD
点击：
生成光绘后，如下信息，请问，这些warning有没有影响，谢谢。
================================================================
PROCESSING FILM < TOP >
TO FILE < D:/SCWORK/SYSB/PCB/TOP.art > ...
================================================================
FILM PARAMETERS :
---------------------------------------------------------
Undefined line width 6.000
Mirror code NONE
Rotate angle NONE
Offset x: 0.000
Offset y: 0.000
Plot negative NO
Suppress unconnected internal pads NO
WARNING: 0 width line found at (20.000 0.000)
... using undefined line width of 6.000
WARNING: Segment with same start and end points at
(2709.189 1745.260) will be ignored. Increasing output
accuracy may allow segment to be generated.
WARNING: Segment with same start and end points at
(1175.500 1103.598) will be ignored. Increasing output
accuracy may allow segment to be generated.
================================================================
PROCESSING FILM < TOP >
TO FILE < D:/SCWORK/SYSB/PCB/TOP.art > ...
================================================================
FILM PARAMETERS :
---------------------------------------------------------
Undefined line width 6.000
Mirror code NONE
Rotate angle NONE
Offset x: 0.000
Offset y: 0.000
Plot negative NO
Suppress unconnected internal pads NO
WARNING: 0 width line found at (20.000 0.000)
... using undefined line width of 6.000
WARNING: Segment with same start and end points at
(2709.189 1745.260) will be ignored. Increasing output
accuracy may allow segment to be generated.
WARNING: Segment with same start and end points at
(1175.500 1103.598) will be ignored. Increasing output
accuracy may allow segment to be generated.
第一個是你沒有定義線寬的部分他幫你定義到6 mil
後面是說你的現有重覆
或著你更改一下你輸出的FORMAT
format应该怎么设置呢?

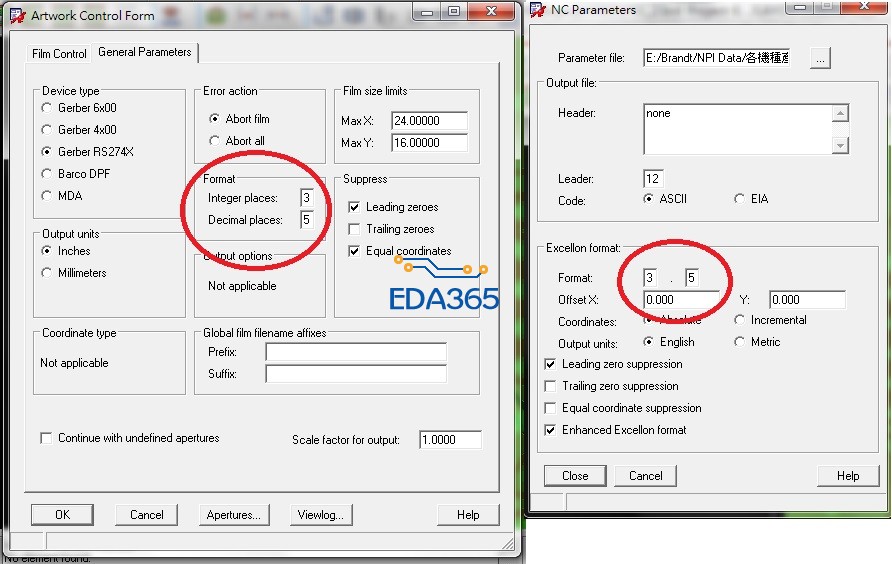

這邊
上面那个参数改成3 4 5都还是这样。
你去他給你的座標位置看一下線路是不是重疊
刪掉線路重新拉
没有重叠，有用SKILL检查。
那就不用管他了
