求助 ORCAD生成allegro网表出现警告，什么意思啊

Configuration File:
C:\Cadence\SPB_16.5\tools\capture\allegro.cfg
Spawning... "C:\Cadence\SPB_16.5\tools\capture\pstswp.exe" -pst -d "d:\cadence\infrared\infrared.dsn" -n "D:\CADENCE\INFRARED" -c "C:\Cadence\SPB_16.5\tools\capture\allegro.cfg" -v 3   -l 31 -s "" -j "PCB Footprint" -hpath "HPathForCollision"
#1 WARNING(ORCAP-36006): Part Name "INDUCTOR_L-9_0S_PASSIVE_INDUCTOR" is renamed to "INDUCTOR_L-9_0S_PASSIVE_INDUCTO".
#2 WARNING(ORCAP-36006): Part Name "LM2575D2T-12_936A-02_LM2575D2T-5" is renamed to "LM2575D2T-12_936A-02_LM2575D2T-".
#3 WARNING(ORCAP-36042): Pin "GND" is renamed to "GND#3" as visible power pin of same name already exists in Package LM2575D2T-12 , U19: New Controller, New Contorller.SchDoc (142.24, 200.66).
#4 WARNING(ORCAP-36042): Pin "GND" is renamed to "GND#6" as visible power pin of same name already exists in Package LM2575D2T-12 , U19: New Controller, New Contorller.SchDoc (142.24, 200.66).
#5 WARNING(ORCAP-36042): Pin "VSS" is renamed to "VSS#6" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#6 WARNING(ORCAP-36042): Pin "Vss" is renamed to "VSS#42" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#7 WARNING(ORCAP-3604
2): Pin "V3" is renamed to "V3#43" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#8 WARNING(ORCAP-36042): Pin "V18" is renamed to "V18#17" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#9 WARNING(ORCAP-36042): Pin "Vss" is renamed to "VSS#18" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#10 WARNING(ORCAP-36042): Pin "V3" is renamed to "V3#23" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#11 WARNING(ORCAP-36042): Pin "Vss" is renamed to "VSS#25" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#12 WARNING(ORCAP-36042): Pin "V18" is renamed to "V18#49" as visible power pin of same name already exists
in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#13 WARNING(ORCAP-36042): Pin "V3" is renamed to "V3#51" as visible power pin of same name already exists in Package LPC2119 , U2: New Controller, New Contorller.SchDoc (121.92, 30.48).
#14 WARNING(ORCAP-36042): Pin "OUT" is renamed to "OUT#2" as visible power pin of same name already exists in Package REG1117-5 , U7: New Controller, New Contorller.SchDoc (86.36, 264.16).
#15 WARNING(ORCAP-36042): Pin "OUT" is renamed to "OUT#4" as visible power pin of same name already exists in Package REG1117-5 , U7: New Controller, New Contorller.SchDoc (86.36, 264.16).
Scanning netlist files ...
Loading... D:\CADENCE\INFRARED/pstchip.dat
Loading... D:\CADENCE\INFRARED/pstchip.dat
Loading... D:\CADENCE\INFRARED/pstxprt.dat
Loading... D:\CADENCE\INFRARED/pstxnet.dat
packaging the design view...

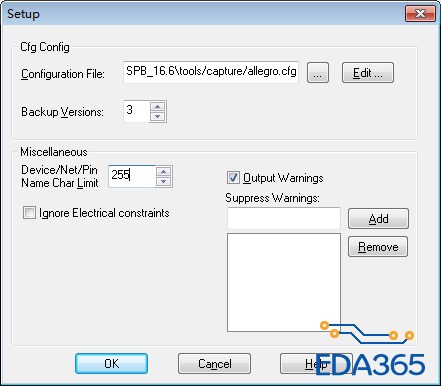

part name太长了，   Device/Net/Pin name char limit 里面的值改一下就好了。如附件

它为什么要rename啊?

我遇到同样情况，小编如何解决的 啊，求方法，谢谢啦

目前没有看有人支招

这些都是警告啊 错误在哪里\、

这些都没有错啊 ，意思都是说这个原理图有脚名字一样，编号不同就没事啊

U2/U7 有名稱相同，改掉OrCAD中的名稱就可以

orcad里只允许power属性的引脚可以重名

电源属性管脚重名也要产生警告，不过不影响网表生成

我用的16.6S038怎么找不到这个Setup啊

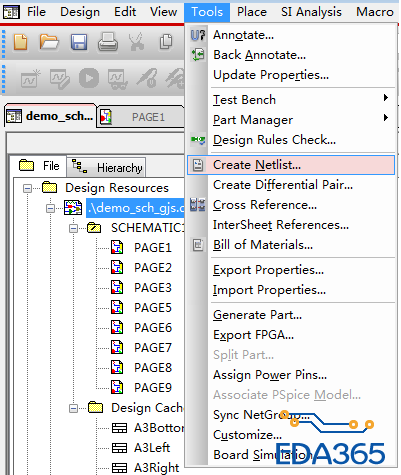

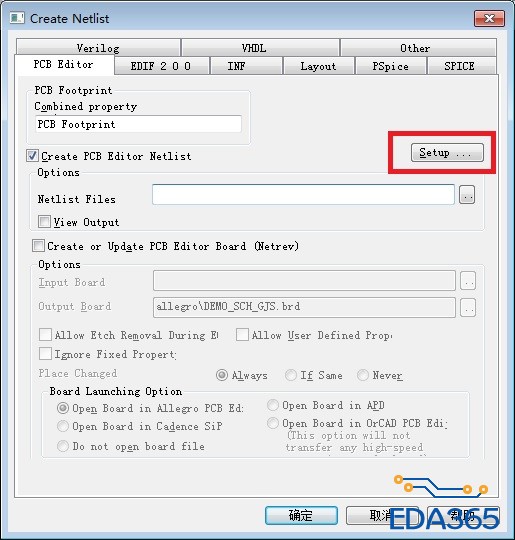

打开capture,  选择菜单tools--create Netlist....，  在弹出的窗口中的PCB Editor的选项卡，  选择setup。  你就会看到之前提到的窗口了。

十分感谢，平时都没注意这个问题，嘿嘿，多谢多谢。

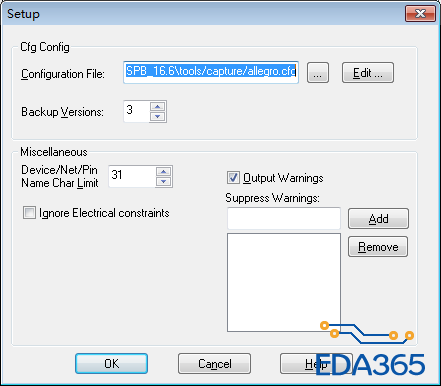

问一下！为什么要把31数值改成255数值呀！

之前不知道，现在知道了。非常感谢你！
