Allegro生成表網表的問題
时间：10-02
整理：3721RD
点击：
請教各位大大

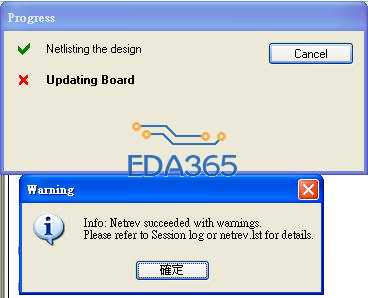

小弟使用Allegor 15.7生成netlist時一直出現下列訊息
log顥示的錯誤大約如下,該怎麼處理呢
#56 WARNING(304) Device/Symbol check warning detected.
Symbol 'OSC_14' for device 'CLOCK_DIP14_OSC_14_CLOCK' not found in PSMPATH or must be "dbdoctor"ed.
#57 WARNING(304) Device/Symbol check warning detected.
Symbol 'SOIC127P600X175-8' for device 'CY2303_SOIC127P600X175-8_CY2303' not found in PSMPATH or must be "dbdoctor"ed.
#58 WARNING(304) Device/Symbol check warning detected.
Symbol 'BGA272DSP' for device 'TMS320C6713GDP_BGA272DSP_TMS320' not found in PSMPATH or must be "dbdoctor"ed.
#59 WARNING(304) Device/Symbol check warning detected.
Symbol 'SDRAMTSOP86' for device 'MT48LC2M32B2B5-6_SDRAMTSOP86_MT' not found in PSMPATH or must be "dbdoctor"ed.
#60 WARNING(304) Device/Symbol check warning detected.
Symbol 'SST39VFTSOP48' for device 'SST39VF800A_SST39VFTSOP48_SST39' not found in PSMPATH or must be "dbdoctor"ed.
小弟使用Allegor 15.7生成netlist時一直出現下列訊息
log顥示的錯誤大約如下,該怎麼處理呢
#56 WARNING(304) Device/Symbol check warning detected.
Symbol 'OSC_14' for device 'CLOCK_DIP14_OSC_14_CLOCK' not found in PSMPATH or must be "dbdoctor"ed.
#57 WARNING(304) Device/Symbol check warning detected.
Symbol 'SOIC127P600X175-8' for device 'CY2303_SOIC127P600X175-8_CY2303' not found in PSMPATH or must be "dbdoctor"ed.
#58 WARNING(304) Device/Symbol check warning detected.
Symbol 'BGA272DSP' for device 'TMS320C6713GDP_BGA272DSP_TMS320' not found in PSMPATH or must be "dbdoctor"ed.
#59 WARNING(304) Device/Symbol check warning detected.
Symbol 'SDRAMTSOP86' for device 'MT48LC2M32B2B5-6_SDRAMTSOP86_MT' not found in PSMPATH or must be "dbdoctor"ed.
#60 WARNING(304) Device/Symbol check warning detected.
Symbol 'SST39VFTSOP48' for device 'SST39VF800A_SST39VFTSOP48_SST39' not found in PSMPATH or must be "dbdoctor"ed.
你把它提示的这几个元件重新生成下device和psm文件，更新下试试
warning,可以忽略操作，如果确定放不下来，那你把这几个封装，重新打开，再重新存档就OK！
是啊。楼上说的对，一般出现ERROR才必须要解决。wanging一般不处理可以直接导入的。小编应该把ERROR截下来。呵呵。
封装问题，检查一下封装库和路径
