这个层次原理图为啥总报错呢？
时间：10-02
整理：3721RD
点击：

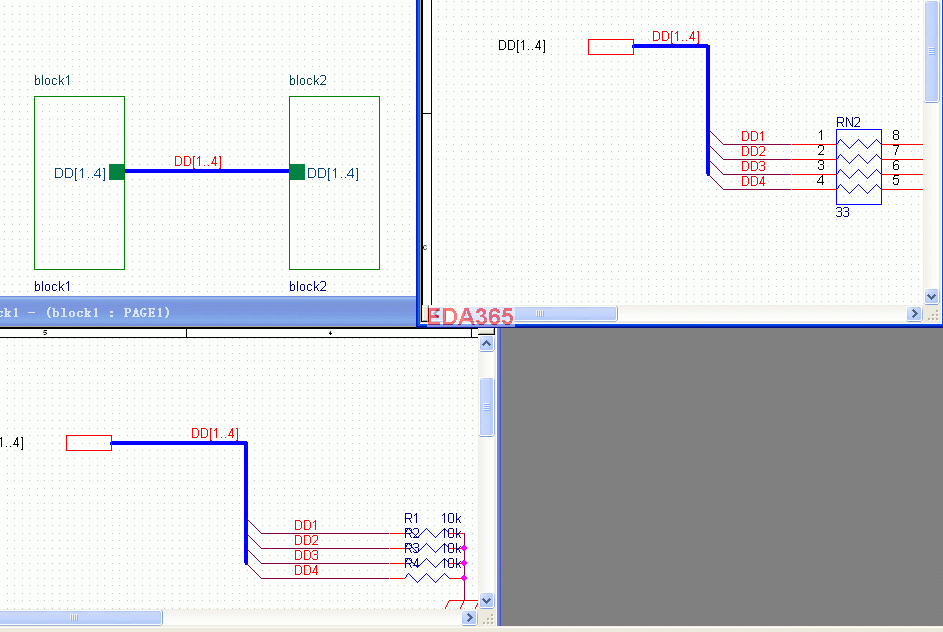

尝试画个层次原理图，很简单，就几个电阻一连，可是画完了DRC的时候总是报错：
Checking Misleading Tap connection
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD1: SCHEMATIC1, top (3.55, 2.30)
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD2: SCHEMATIC1, top (3.55, 2.30)
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD3: SCHEMATIC1, top (3.55, 2.30)
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD4: SCHEMATIC1, top (3.55, 2.30)
hierarchical pin name D[1..4],
bus name DD[1..4],
net alias 分别为DD1，DD2，DD3，DD4。
问题出在哪呢?如果把根图上的bus name 去掉，就又报警了，
Check Bus width mismatch
N06946 has not connected with proper width
WARNING [DRC0030] Bus width is not matching with the port Width block1,DD[1..4]: SCHEMATIC1, top (2.45, 2.30)
N06946 has not connected with proper width
WARNING [DRC0030] Bus width is not matching with the port Width block2,DD[1..4]: SCHEMATIC1, top (3.55, 2.30)
Checking Misleading Tap connection
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD1: SCHEMATIC1, top (3.55, 2.30)
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD2: SCHEMATIC1, top (3.55, 2.30)
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD3: SCHEMATIC1, top (3.55, 2.30)
ERROR [DRC0039] Tap may not be connected with the bus Check Entire net. DD4: SCHEMATIC1, top (3.55, 2.30)
hierarchical pin name D[1..4],
bus name DD[1..4],
net alias 分别为DD1，DD2，DD3，DD4。
问题出在哪呢?如果把根图上的bus name 去掉，就又报警了，
Check Bus width mismatch
N06946 has not connected with proper width
WARNING [DRC0030] Bus width is not matching with the port Width block1,DD[1..4]: SCHEMATIC1, top (2.45, 2.30)
N06946 has not connected with proper width
WARNING [DRC0030] Bus width is not matching with the port Width block2,DD[1..4]: SCHEMATIC1, top (3.55, 2.30)
