Help me ! it is incorrect about simulation of 915MHZ antenna
时间：04-10
整理：3721RD
点击：
simulation the ceramic antenna , is microstrip .

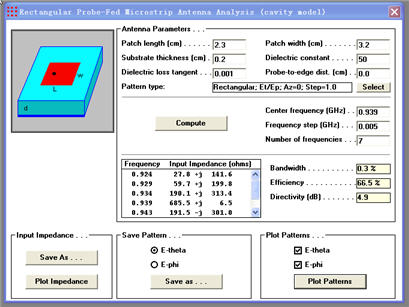

use PCAAD 5.0 ,
TOP METAL width 32mm
long 23mm.
cremic width 42mm ,long 34mm.thickness 2mm
ground is 80mm *80mm pec conductor .
ceramic Er is 50
the result(cavity model ) is center frequency 939MHZ .
but use HFSS
may i is wrong ?

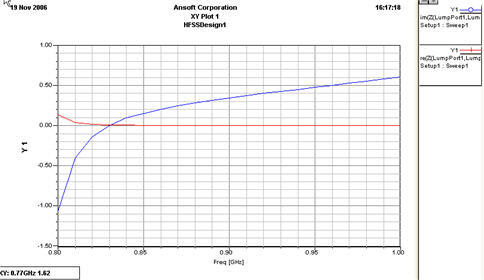

this is Z
i think the result is wrong , pls any body help me !
use PCAAD 5.0 ,
TOP METAL width 32mm
long 23mm.
cremic width 42mm ,long 34mm.thickness 2mm
ground is 80mm *80mm pec conductor .
ceramic Er is 50
the result(cavity model ) is center frequency 939MHZ .
but use HFSS
may i is wrong ?
this is Z
i think the result is wrong , pls any body help me !
