How to simulate noise match in ADS?
时间：04-10
整理：3721RD
点击：
Dear all,
I am learning LNA noise match step by step in some document as below schematic.

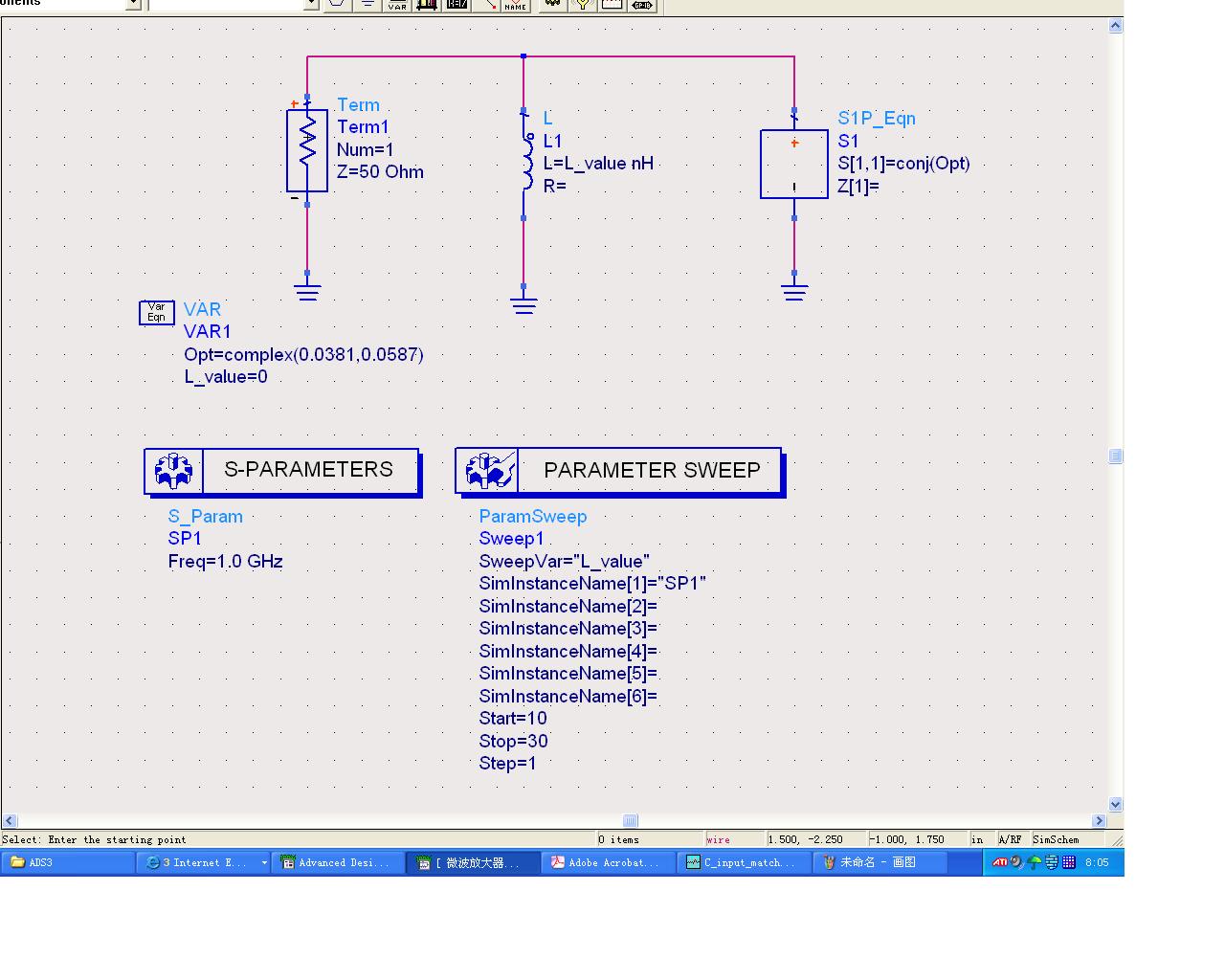

1.parallel L

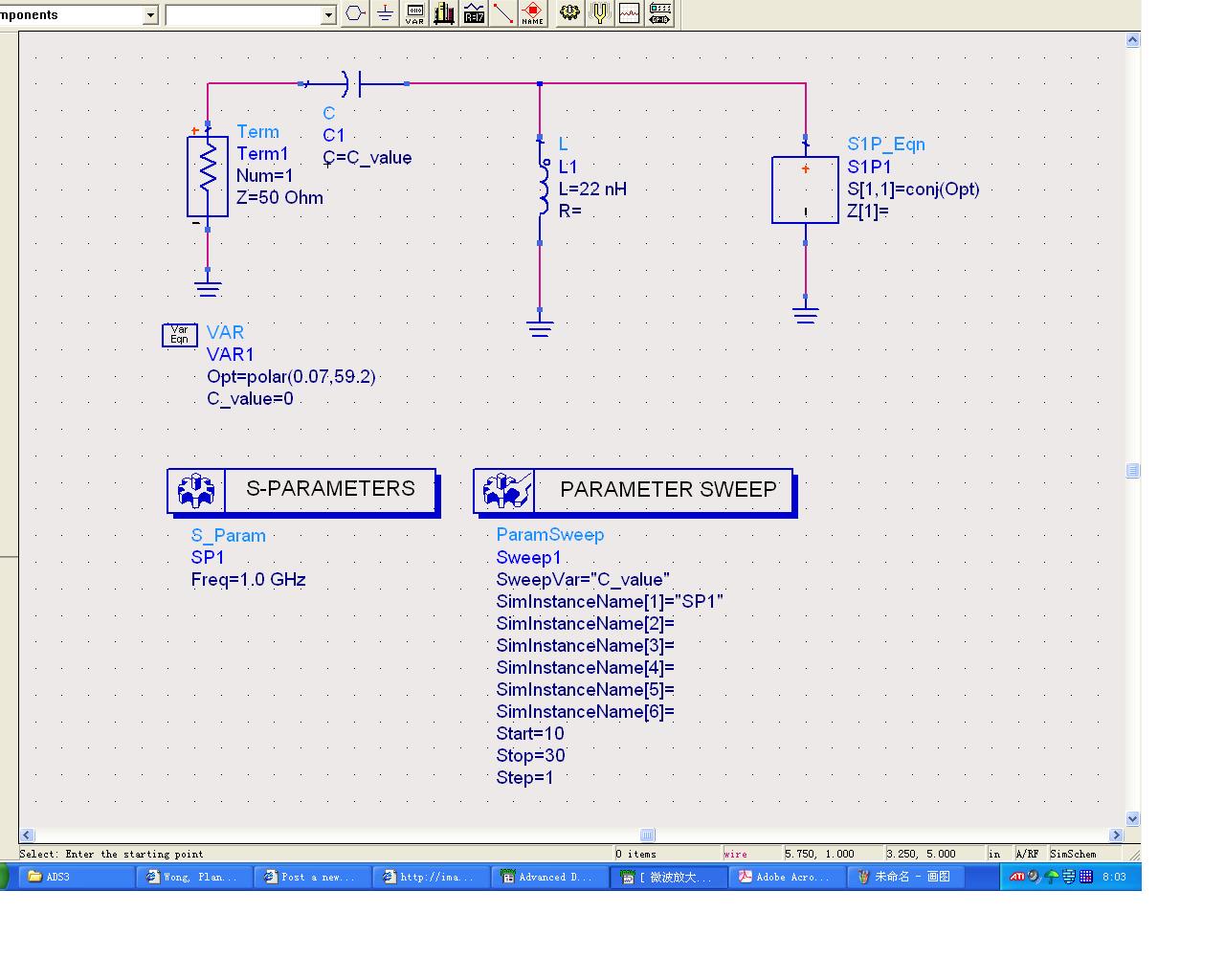

2.serial C

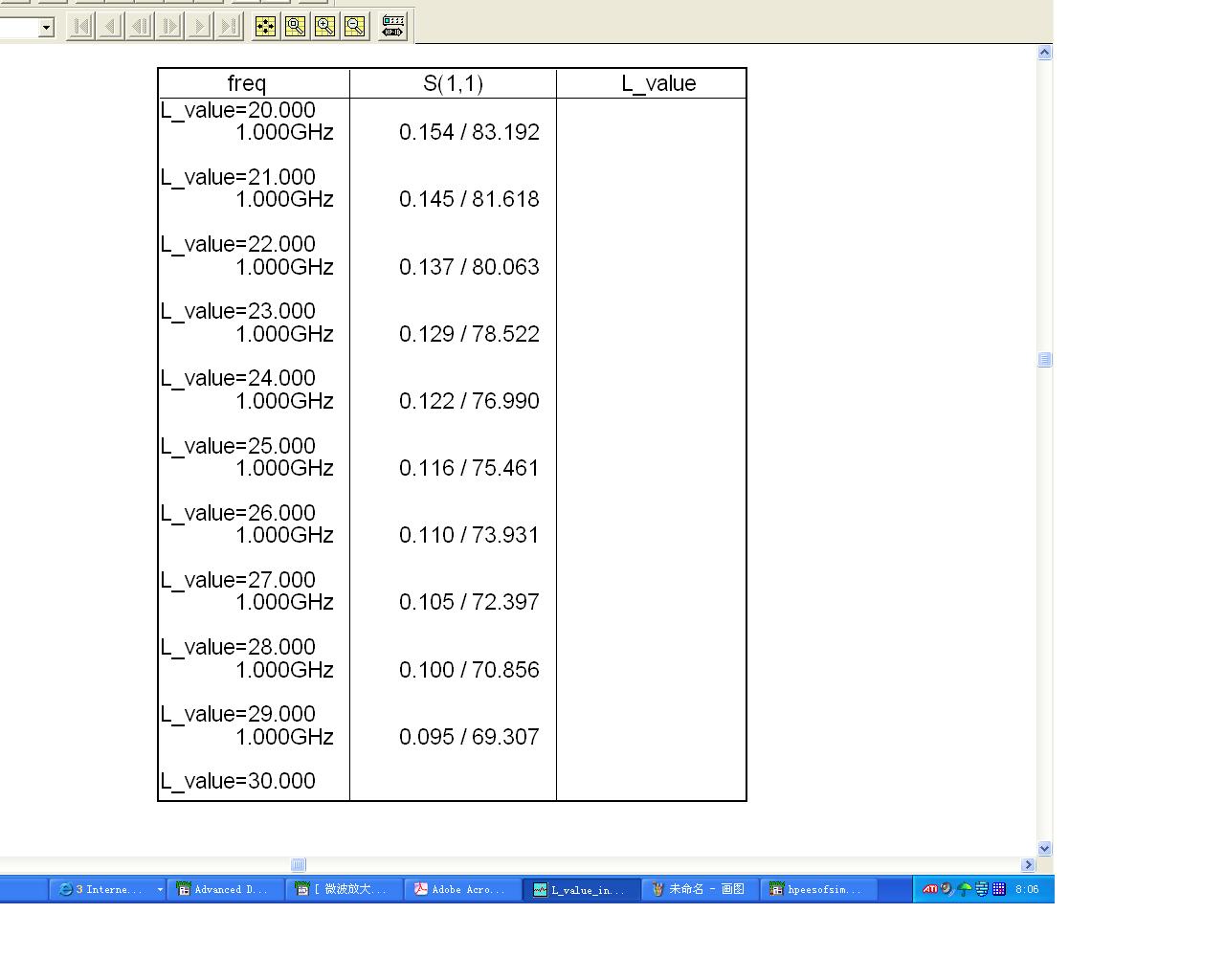

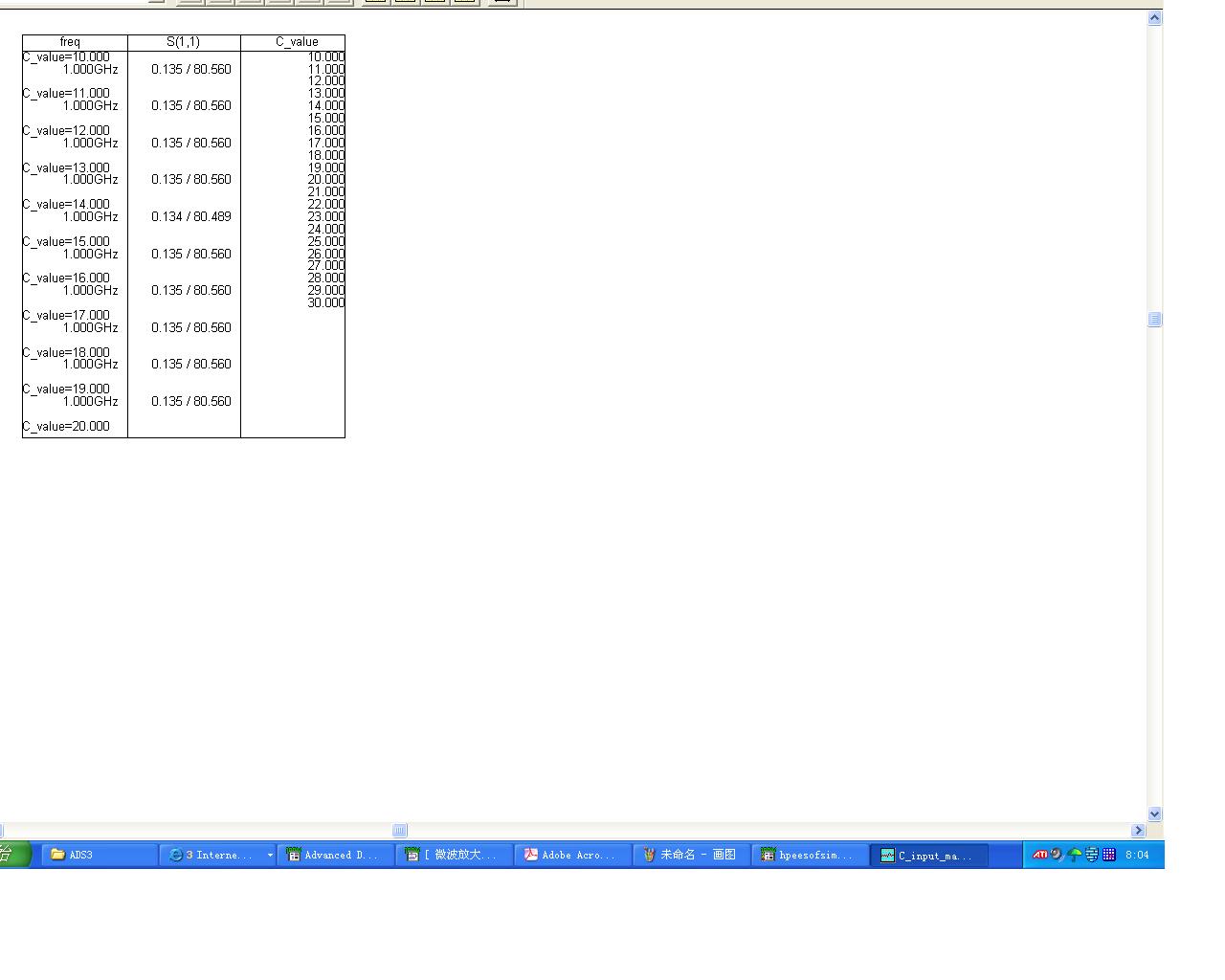

My question is why select L=22nH and C=12pf,because the result S11 not equal Sopt,anybody kindly tell me the reason?
Thank you in advance,
John
I am learning LNA noise match step by step in some document as below schematic.
1.parallel L
2.serial C
My question is why select L=22nH and C=12pf,because the result S11 not equal Sopt,anybody kindly tell me the reason?
Thank you in advance,
John
