how to make a pspice model with psp file
here are the nonlinear models
CEL
http://www.cel.com/static.do?command=adskit&group=4
ATF34143 nonlinear model
http://www.avagotech.com/assets/down...ent.do?id=1514
ATF36077 spice model
http://www.avagotech.com/assets/down...ent.do?id=1485
NEC nonlinear models
http://www.ncsd.necel.com/microwave/...ibraryv4.0.zip
wish this help u
khouly
thanks. it is useful for me but i have some questions to ask:
1. the zap file i unarchived already but how can I put in my design and use it?
2. the spice model (PSP) file how to put in the library and use it?
the zap file , from the main window , select unarchive , and hen browse the file and open it
the PSP u need to use the netlist converter to make it for ADS
khouly
can you explain or where can I get the step on how to use the netlist converter? is it include in ADS the converter?
I already unarchive the zap file. how to put in my design?
go to the folder and copy the contents of network folder and paste them in the networks folder in ur project
khouly
can anyone explain on how to install PSP fiel in ADS and use it? thanks
the PSP file is a text file , in ads fileenu select import and then sect spice netlist , and in more oprion make it Pspice netlist
and ok , ADS will convert the file t anothoer file can be used in ADS smulation
khouly

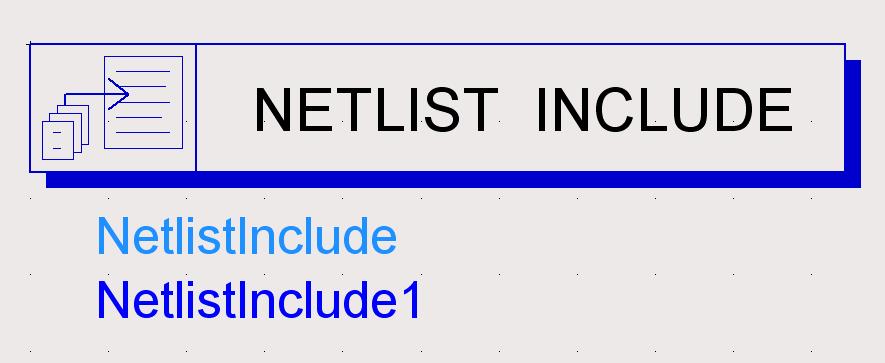

is it something looks like the figure below after create?
And how to use it in scheamtic drawing?
yeah , this is a netlist include , which make ADS include the netlist file u have imported to the simulation
but do u know the PSP file is just the model , or the compleet HEMT subcircuit
khouly
sorry dont understand what you mean by just a model? i can c the layout as well...but dont know how to use it if in a schematic.
i mean the model only not complete tranasisotr with packgae and other parasitics
khouly
any method to add the parasitic and all the related value in this model?
you can do it by using a sub-circuit.
