What is the Low Noise Block (LNB)?

Hello Everyone;
What is LNB (Low Noise Block)? Which blocks are contained in it? Please explain fully.

the LNB contains , 1) 2 LNAs for vertical and horizontal reception
2) gain stage
3)image rejection filter
4)mixer
5)2 LO for high and low band
6) IF filter
7) IF amplifier
8) control circuitry
check this

khouly

Hello;
Can anyone provide me detailed block diagram of an LNB in Ku-band?

i had worked some years ago in a similar project i will
try ti find some digrams for u

Khouly

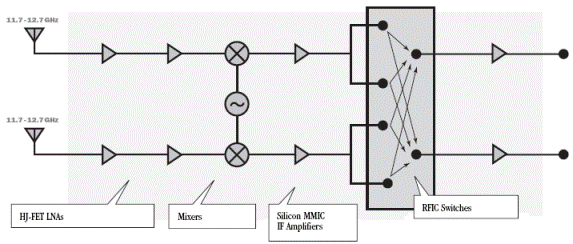

check this simple blaock diagram

khouly

Is it not required for a switch between two LNAs and two Oscillators in the block diagram? or any power combiner can be used?

the power combiner can be used , and the swithing action can be done with control circuit to turn on or off the LNA , or one of the upper and lower Oscillator

Khouly
