Create an AEL function in ADS
时间:04-09
整理:3721RD
点击:
Hi,
I want to define a personnal function in ADS by using AEL file, this function is called in the dds file of the project.
This function uses 3 parameters : Gain, compression and Pdel_dBm, which are computed from schematic by using usual equations (0.5*real(VxI*)....)

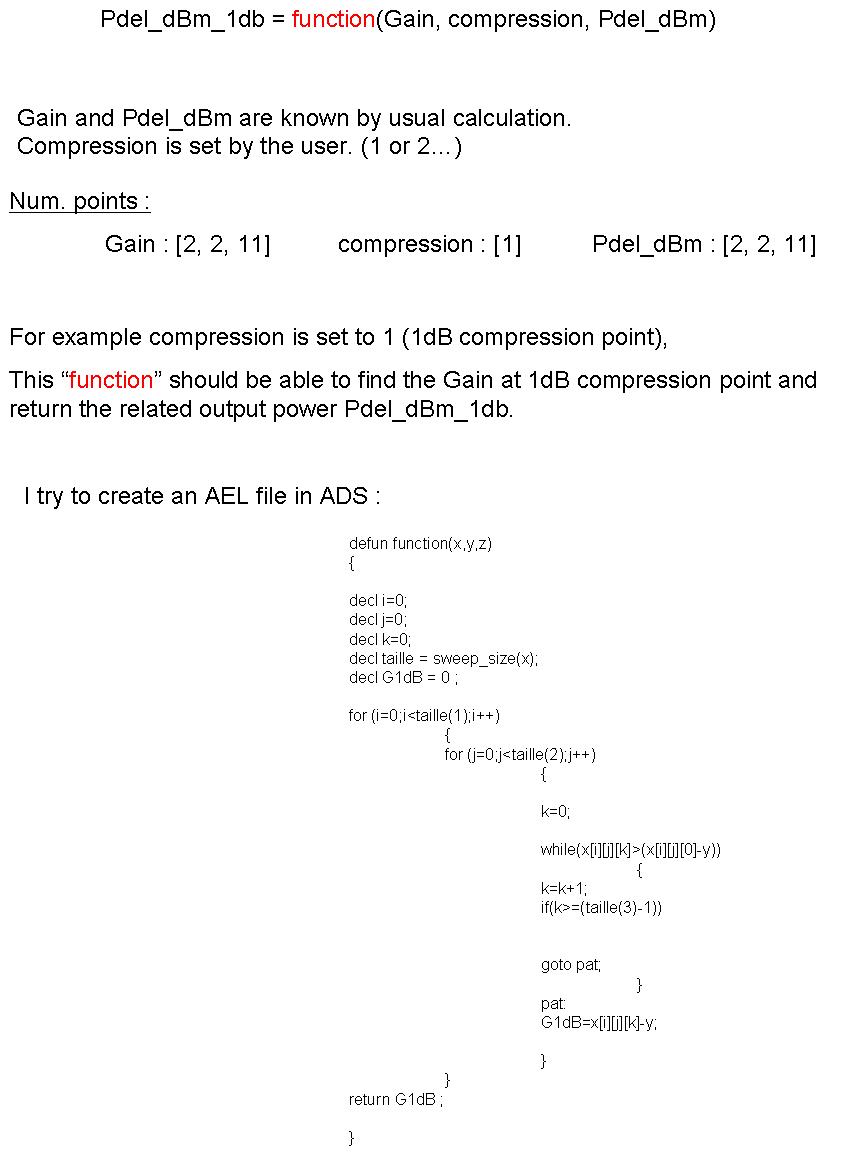

I have to take these data as explain in the picture.
But I encouter some difficulties to create this function.
I give a jpeg picture to describe my problem, could you take a look for me?
thank you for you help
I want to define a personnal function in ADS by using AEL file, this function is called in the dds file of the project.
This function uses 3 parameters : Gain, compression and Pdel_dBm, which are computed from schematic by using usual equations (0.5*real(VxI*)....)
I have to take these data as explain in the picture.
But I encouter some difficulties to create this function.
I give a jpeg picture to describe my problem, could you take a look for me?
thank you for you help
