whAt is it?
时间:04-09
整理:3721RD
点击:
Hello All.

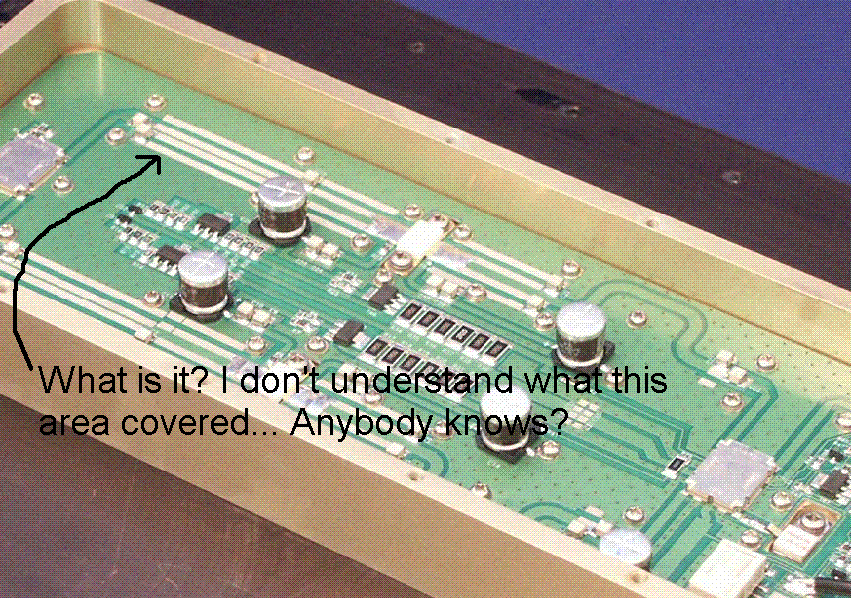

I have the picture of Rf amplifier attached below. And some miscrostrips are covered and i don't know what is it. Anybody could help to understand what is it? What was it done for?
I have the picture of Rf amplifier attached below. And some miscrostrips are covered and i don't know what is it. Anybody could help to understand what is it? What was it done for?

That is provision for matching network with lumped components (capacitor here).
i agree with u kaspalla but do u agree it may a filter?
Added after 1 minutes:
sory:
i agree with u kaspalla but do u agree with me it may be a filter?
in the days before CAD programs it was common to have these transmission lines on the input and output of a transistor. You would cut and try shunt capacitors of different values and locations to sort of optimize the performance.
thanks friend
