What means by a1,b1 in S-Parameter?

Hi! I dont know what means by a1,b1,a2,b2 in S-Parameter? A voltage wave or power wave? and Why √Zo? Thanks!

Hello CQCQ,

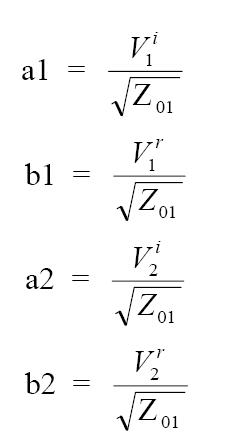

a1,a2 are incident voltages and b1,b2 are reflected voltages, each being normalized by √Zo.

Samy

Voltage or Power: It doesn't matter (Both, you can pick) because you divide
a1 by b1 (a1/b1) and they become unit less.

In Microwave/RF we always use 50 ohm for Zo So :

P=V^2/Zo ; or just use the V, and if you use the V you need to keep the √ of Zo !

Also note that (P1=V1^2/Zo & P2=V2^2/Zo)

P1/P2 => ([V1/V2]^2)/[Zo/Zo]

And a1 is the EM wave going in to the port/plane and b1 is the EM
wave coming back from the same port/plane. So once you integrate the
impedance that the EM wave passes you get power.

Hope this helps

hello CQCQ,
can you post the matlab code of the extraction of S-parameter from FDTD
