how to simulate vias inADS

时间:04-08 整理:3721RD 点击:
i wand to create vias in the below strcture by ADS for resonator
FreeSpace
silicon
//////// GND ////////

what is the procedure?

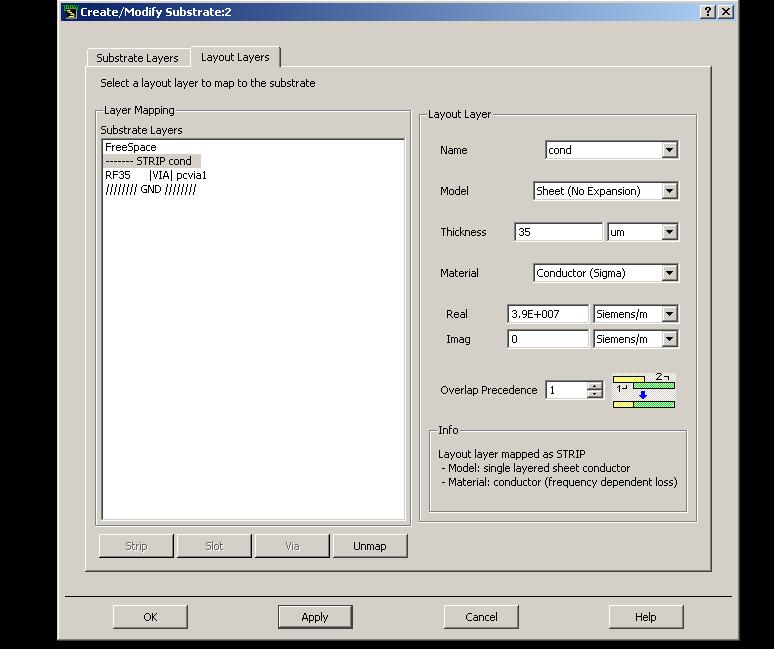

Like that :

hi i am using only silicon layer
i wand to make hole in this(i want to simulate that effect in ADS.)

In the pull down menu (NAME) choose diel instead of cond. Then enter the parameters for silicon.

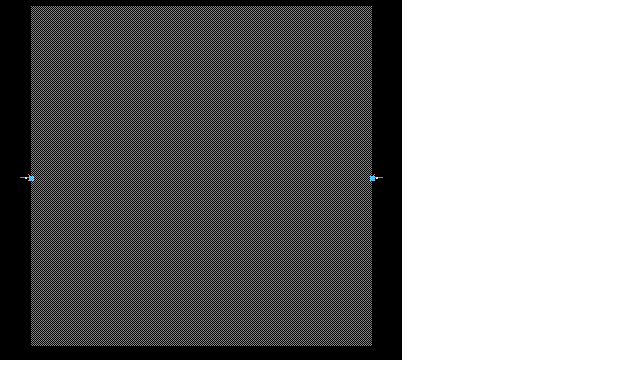

Hi friend i want to create structure like this. i dont know how to create vias
