Simulation of Chip Antenna using S1P file

时间:04-07 整理:3721RD 点击:

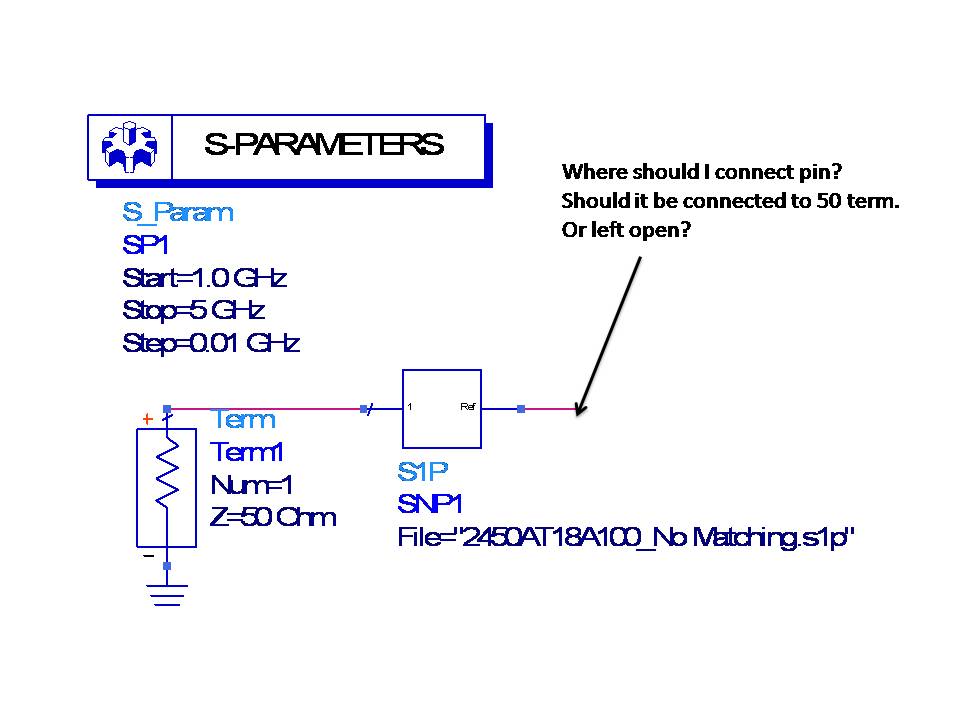

I have s1p file of Antenna. I want to do pi matching for antenna performance. so pls tell me the simulation setup of for antenna. when i import the s1p file in ADS, it has two pins . I have connected pin 1 to 50 ohm term. what should be the connection of pin 2(Reference). please check attached image.
