Simultaion of the VCO phase noise
时间：04-04
整理：3721RD
点击：
Hi;

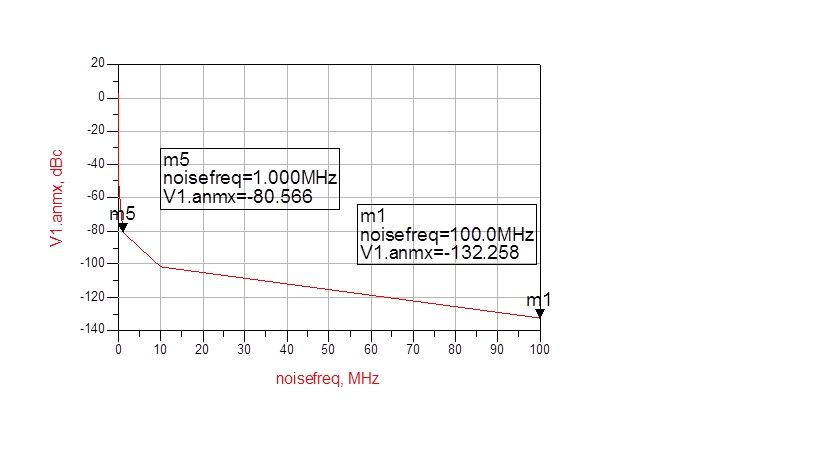

When i used both of Harmonic Balance and Phase noise controler, i display these curve as bellow:
However, the matter that i should determine the phase noise at 1MHZ or these simulation results prove that the curve finish in 100MHZ . I ask what can i do to obtain the lower value in 1 MHZ nad if some adjustement of the phase noise set up should done to obtain good results. I'm so gratefull to answer me.
Sincerly;
When i used both of Harmonic Balance and Phase noise controler, i display these curve as bellow:
However, the matter that i should determine the phase noise at 1MHZ or these simulation results prove that the curve finish in 100MHZ . I ask what can i do to obtain the lower value in 1 MHZ nad if some adjustement of the phase noise set up should done to obtain good results. I'm so gratefull to answer me.
Sincerly;
Show me netlist.
Plot noise as logscale of x-axis.
And plot pnmx not anmx.
http://www.designers-guide.org/Forum...num=1280323054
Increase the Noise Points in HB Noise Controller or HB Noise Tab. For instance, increase as " 5 Points per Decade" in Noise Controller.
Thank you i do it and i adjust the first NL noise start to 1HZ and the NL noise stop to 1MHZ. Finally, i obtained the desired curve .
