How to get Pin(t) values in envelope simulation?
时间:04-08
整理:3721RD
点击:

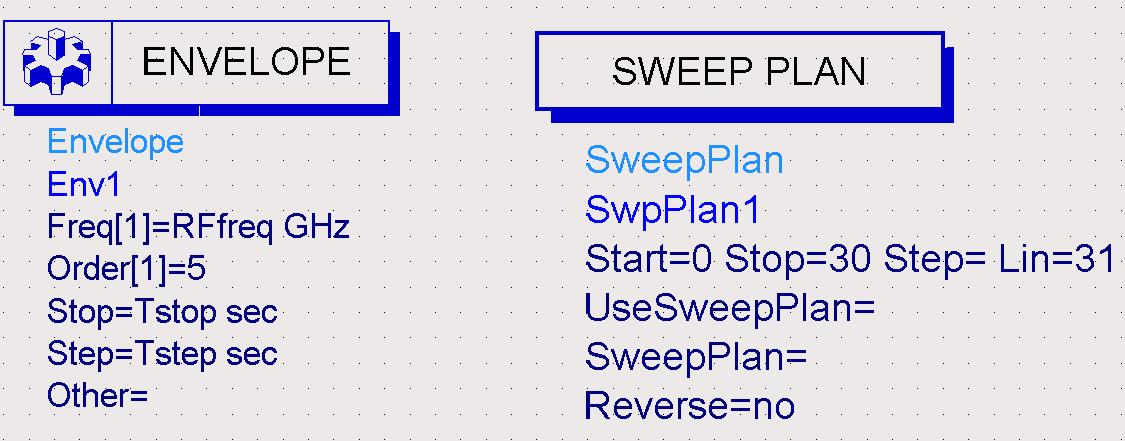

I am performing envelope simulation in ADS. I do a power sweep with Pin variable which actually represents incident power mean.
Pin is moving from 0 dBm to 30 dbm (stepped by 1) for example
I need to display time varying incident power from my envelope simulation.
I don't know how to get Pin(t) and which function I could use for this?
thank you for your help
Pin is moving from 0 dBm to 30 dbm (stepped by 1) for example
I need to display time varying incident power from my envelope simulation.
I don't know how to get Pin(t) and which function I could use for this?

thank you for your help
Anybody?
using a FDD component, could I get Pin(t) values at each time step?
if someone is interested, finally I solved it using FDD components working in the frequency domain.
