waveguide to microstrip transition

Hi,

do you know something about rectangular waveguide to microstrip transition? Have you some information about design?

Thank

You need to have a probe to couple all you waveguide energy to you microstrip. There are few papers to get you started with your design, but most of you work (tuning) will be running sp in HFSS monitoring your insertion loss (S21). If time permits I will locate some references for you.
Good luck
Bouchy

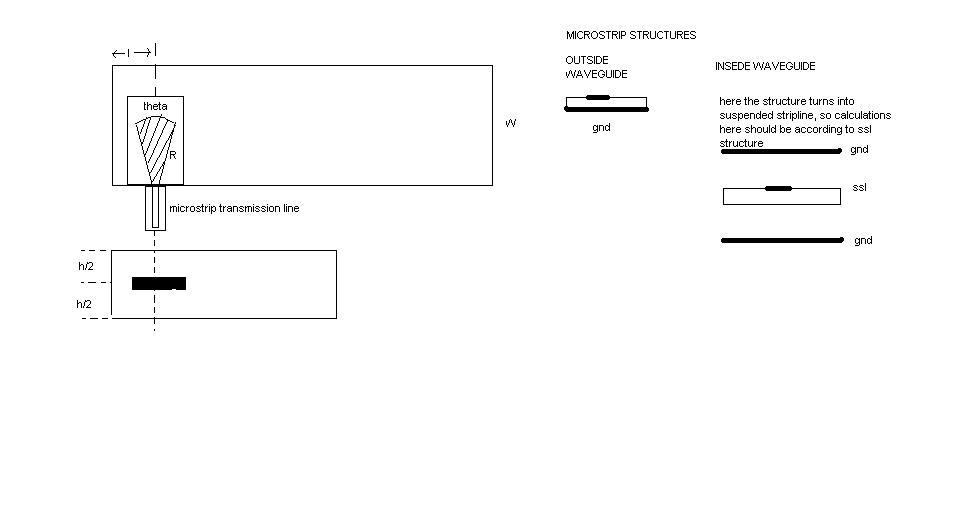

initially set R= lamda_g/4 (calculated according to ssl) at the center frequency of operation.
Theta is over 45 degs. This is a tuning parameter. Select as 60 degs.
L is around lamda_g/4 (calculated according to waveguide parameters.) at the center frequency.
Put the microstripline in to simulation but deembed this line in the simulation.
Select the total length of the waveguide to be somewhat around 3 ? 4 lambda_g(calculated according to waveguide parameters.)
Tune R (%10 stdev), theta (+/- 45degs) and l, select for the best Zin (seen at the junction of microstrip and the ssl). By tuning I mean parameter sweep option in HFSS.

You can also look at IEEE papers, you can scale the values according to your frequencies.

Thank, I will try it.

Hi

You can find some details and pictures in the book

Izadian, Izadian ? Microwave Transition Design, Artech House, 1988

flyhigh

hi any forum this book is avilable
