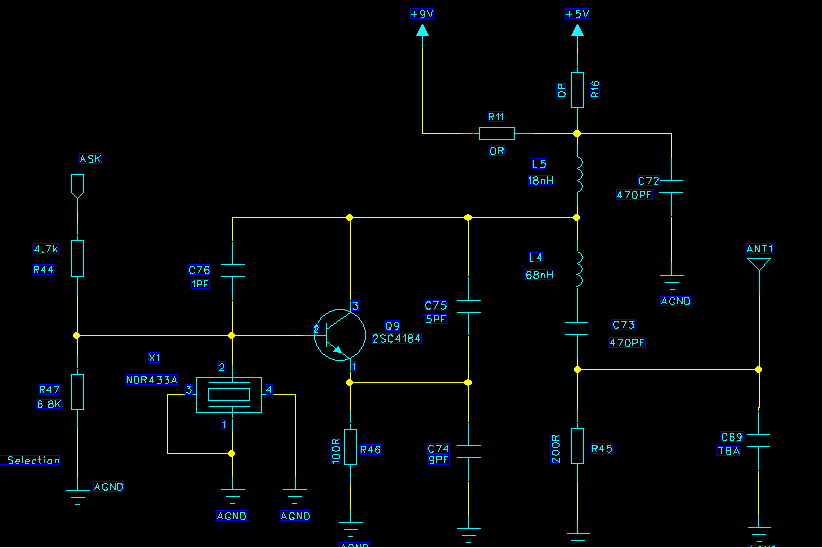

the schematic of the 433Mhz oscillation circuit
时间：04-08
整理：3721RD
点击：
Hi to All,can anyone tell me how this 433Mhz oscillation circuit works?say,the function of each cap or resistor.
also,any layout guideline for this circuit?
many thx in advance!
also,any layout guideline for this circuit?
many thx in advance!
