HFSS small help,,its urgent so plz help me,only 5 min u hv o give

时间:04-07 整理:3721RD 点击:
i m designing DRA..in radiation pattern output..i can see the e-field but hw to get the h-field ? plz help frds..ite urgent..hw to get the H-field...? plz tell me step one by one...

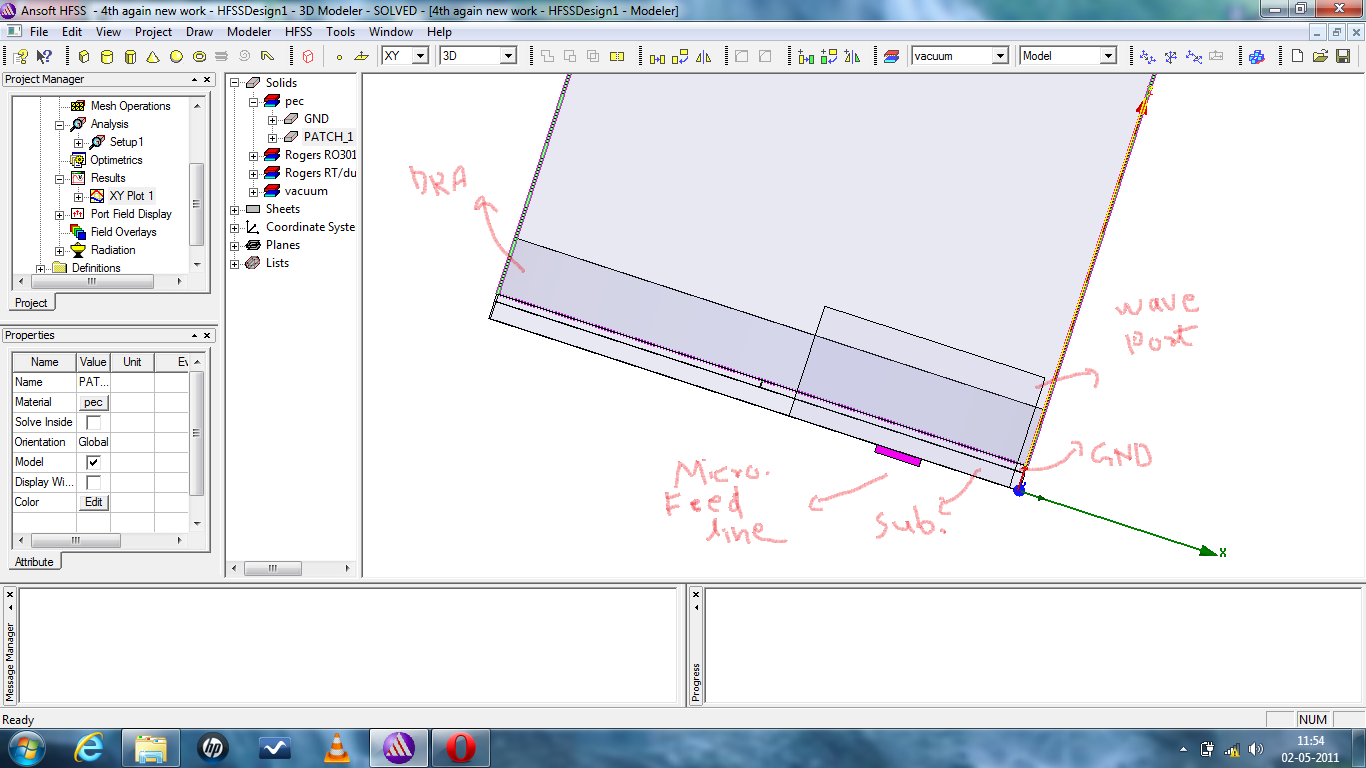

in simple structure first grond plan comes,above dat substrate and above sub. microstrip feed line and den DRA comes..

in my sturture first feed line,above dat substrate ,,above sub. gnd plane and den DRA..i hv used truncated ground plane concept but i don't knoe abt feed in dis case..
feed should be in upper direction or lower?
how to design fedd? plz tell me step by strep..i m using HFSS...PLZ HELP ME....THX IN ADVANCE......
