Re: conversation Gain ADS

Some mixer is paasive, and others is active. So the active power consumption is related with the LO power, RF power, etc.

Use equations with node voltage and currents, you will get the power

with dc simulation? I*Vdd=Power?

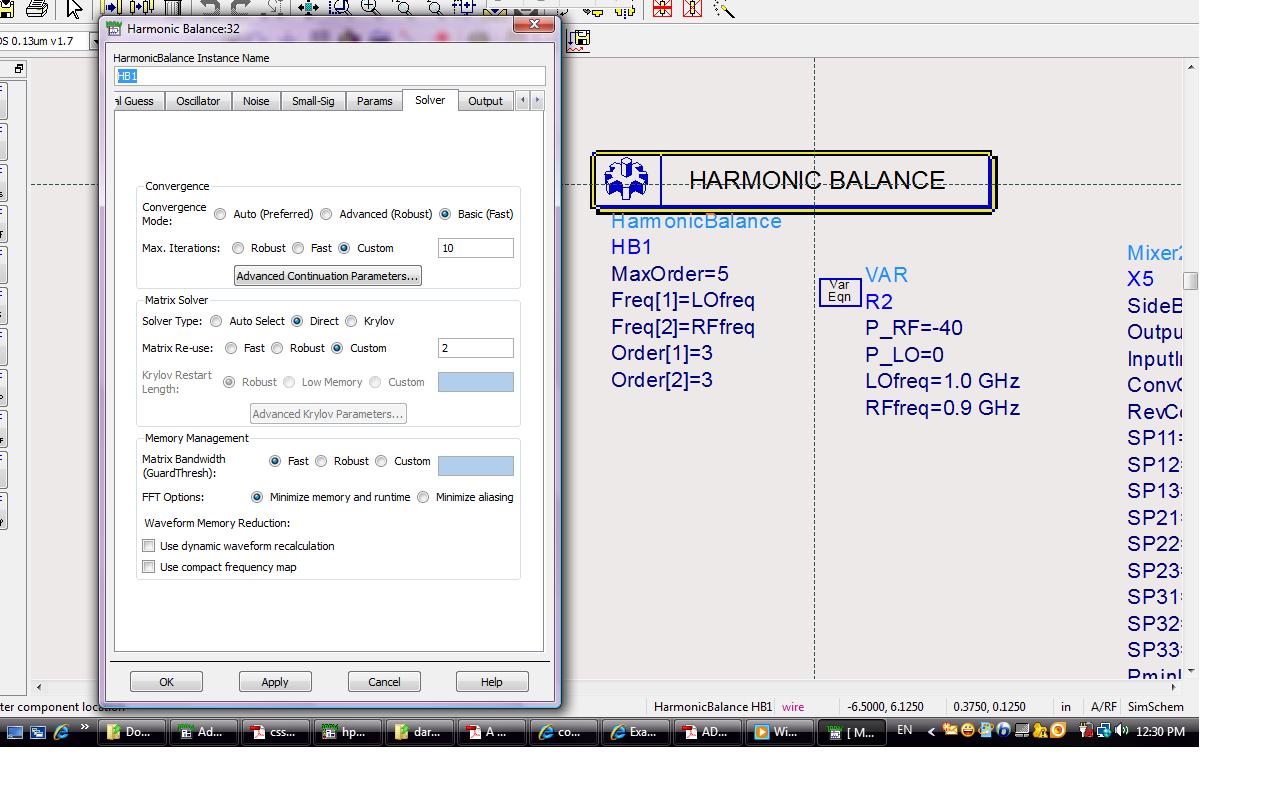

I want to use HB simulation for getting the gain (is it corret?fig 1)

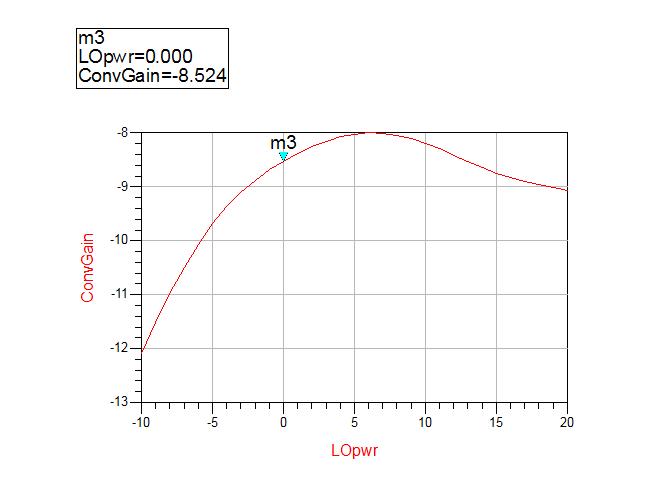

but when the ADS draw the gain I don't know the gain base on what? db or dbm or watt? -8.52 ?(fig. 2)
how can I detect it ?
[

Gain always in dB, and power in dBm, as you have set in your equations, RF power is dBm.

how can I measure a mixer gain with AC simulation?

for gain simulation in solver part >>> Is solver type auto select or direct?

Yes, 1st auto, and if you meet error, then you can try to select different type until you get the sound result.

how can I measure a mixer gain with AC simulation?

How can I sweep gain v.s freq? 0-10G
plzzzzzzz help me

Do you want to use S-Params?
If you, you can set the freq range in this unit, then you can sweep.

I want to use HB simulation and sweep freq. how can I?
