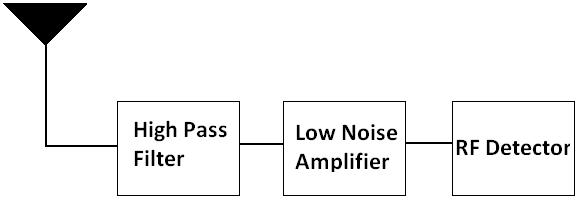

Please find below image have the Block diagram of 200 Mhz RF Receiver. here i found RF-Detector in Linear Technalogy Corp LT5537
& also i need design Low Noise Amplifier's please share your thoughts on designing
Low Noise Amplifier Input Power is -90dbm & output is 30db
RF Detector ==> LT5537
LNA ==> ?
Iam New to this RF Section, so please suggest your thoughts on LNA Design.
& also i need design Low Noise Amplifier's please share your thoughts on designing
Low Noise Amplifier Input Power is -90dbm & output is 30db
RF Detector ==> LT5537
LNA ==> ?
Iam New to this RF Section, so please suggest your thoughts on LNA Design.
Input Power = -90 dBm
Output Power = 30 dBm.( 1W@50 Ohm ) !
Gain=120dB !
You're kidding or you would mean -30dBm..
Sorry, it's -76 db to 14 db [Exepecting 90% Signal Strength]
The input dynamic range of LT5537 is form -74dBm to +14dBm.
I assume you need an LNA to be placed in front of the detector to increase its dynamic range below -74dBm, somewhere near -90dBm.
So, you need an LNA with 16dB of Gain.
You can use one of the low noise MMICs from Minicircuits:
Mini-Circuits
Yes, You are right -90dbm input power & also i need 30db output gain also.
