hexgon unit with triangle grid in floquet port

时间:04-06 整理:3721RD 点击:

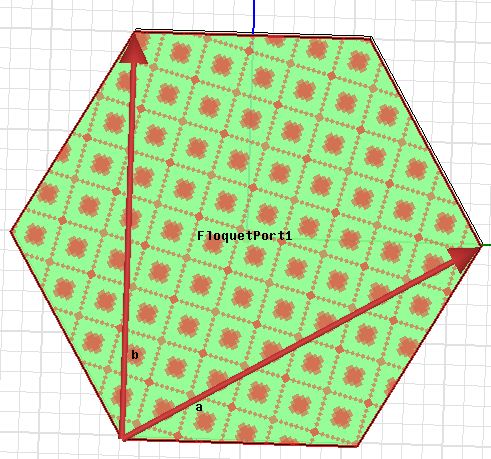

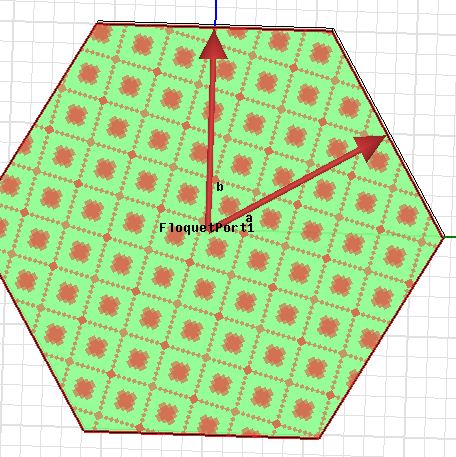

i am simulating a modal. the unit is hexgon and the grid is triangle. when setting the floquet port ,i wonder how to set the vectors a and b.

i wonder which setting is right?thank u

i simulate the two models respectively. the results are the same which means the length the vector have no inpact on the the performance
