Amplifier between TIA and limiting amplifier ?
时间:04-05
整理:3721RD
点击:
Hi, all

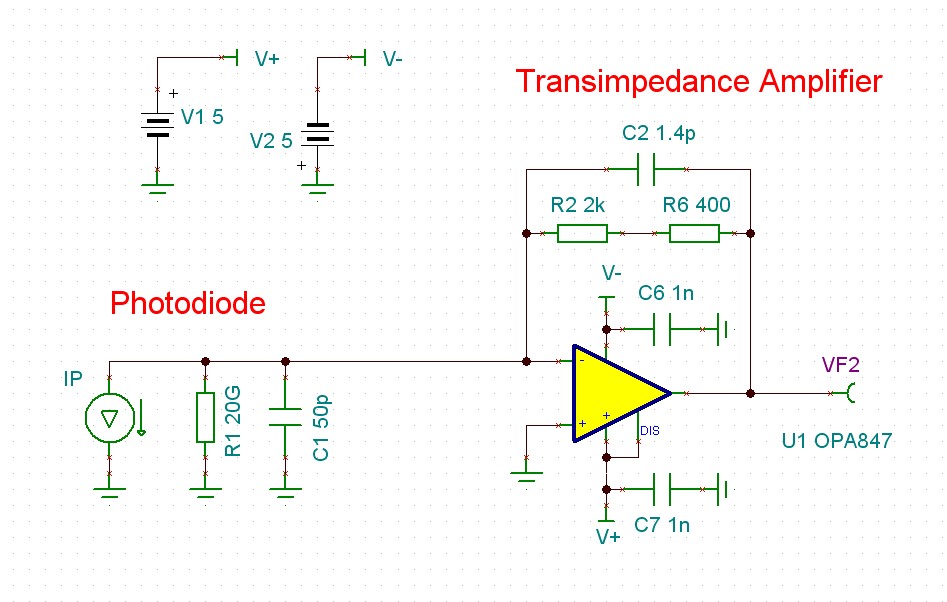

I am designing a TIA like this,

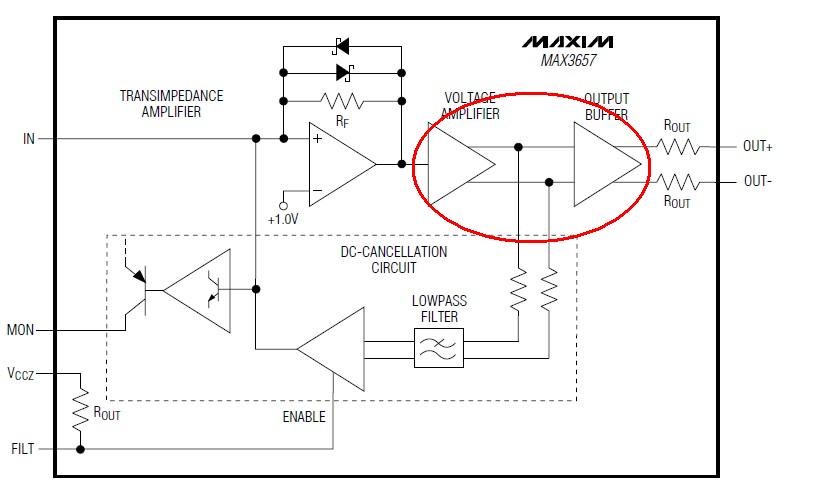

It is single ended, therefore, I think I need a single end to differential amplifier and then connect to the limiting amplifier (differential input). see red circle in the following figure.
Does anybody have a suggestion for this amplifier?
Thanks in advance.
I am designing a TIA like this,

It is single ended, therefore, I think I need a single end to differential amplifier and then connect to the limiting amplifier (differential input). see red circle in the following figure.

Does anybody have a suggestion for this amplifier?
Thanks in advance.
