How to get the Bang-Bang PD PLL difference equations?
时间：04-05
整理：3721RD
点击：
Hi,

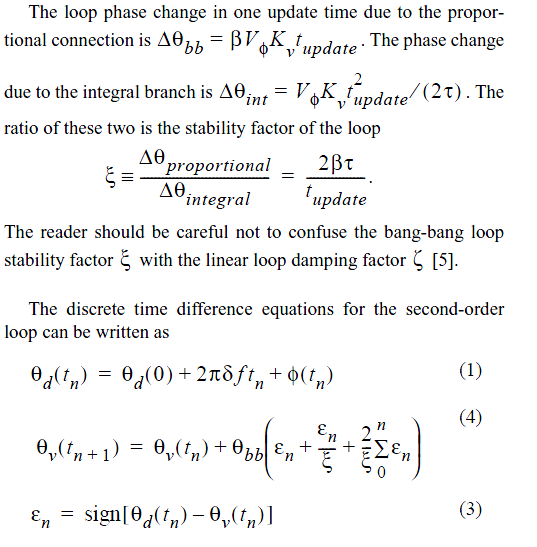

For the first order loop, its difference equations are easily got. But for the second order loop BB PLL, it looks like unclear to get the difference equations. More specifically, I am not clear about the VCO output phase term at the BB PD input, see equ. (4) below please.
First of all, I suspect the 'n' on top of sigma should be a 'n-1'? Then, the ratio of P to I, i.e. Stability Factor(SF), multiplied 2 as the coefficient of the past from 0 to 'n', while the present result for 'n' is (1+1/SF). Yes, for present update, the maximum is sita_bb phase, but why for the past it has different multipliers(2/SF)?
Thanks,
For the first order loop, its difference equations are easily got. But for the second order loop BB PLL, it looks like unclear to get the difference equations. More specifically, I am not clear about the VCO output phase term at the BB PD input, see equ. (4) below please.
First of all, I suspect the 'n' on top of sigma should be a 'n-1'? Then, the ratio of P to I, i.e. Stability Factor(SF), multiplied 2 as the coefficient of the past from 0 to 'n', while the present result for 'n' is (1+1/SF). Yes, for present update, the maximum is sita_bb phase, but why for the past it has different multipliers(2/SF)?
Thanks,
I can't follow equation 4 either.
How about this paper, which describes a better equation and better 3 phase over-sampling detector.
http://www.researchgate.net/publicat...3751fca6c1.pdf
