怎么在板上设置一个特定的规则区域

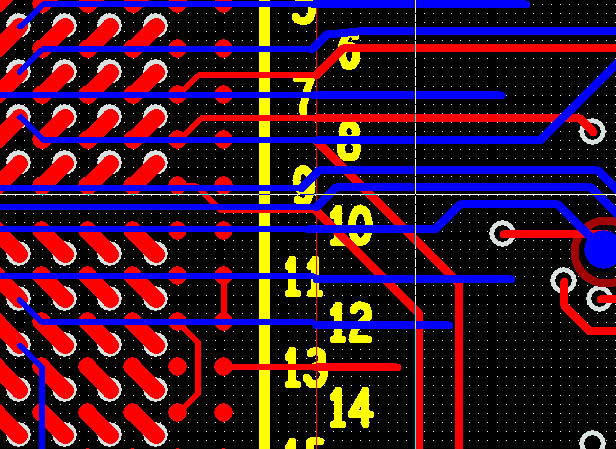

像下面这种在ＢＧＡ的那个框内线宽是０．１１，间距０．１１，过孔０．２５／０．４５

外面的０．１５－０．１５　０．３／０．５

怎么不注明是四层板还是六层板?

　不好意思,是六层的.这个和板层的多少有关吗?我设了,但是执行的还是通用的,没有执行建的那个类里面的规则

建议看ALLEGRO BOOK I或者II，里面有讲！

我手上有三本书都讲得不是很清楚,弄不明白

setup\constraints

裡面有areas 請選add

畫一個constraont裡面就可以獨立在設定^^~

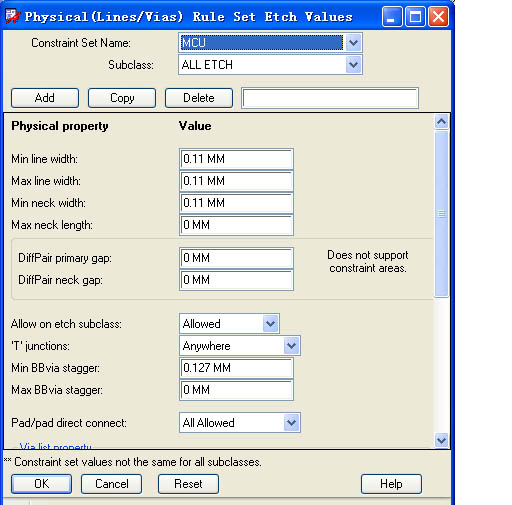

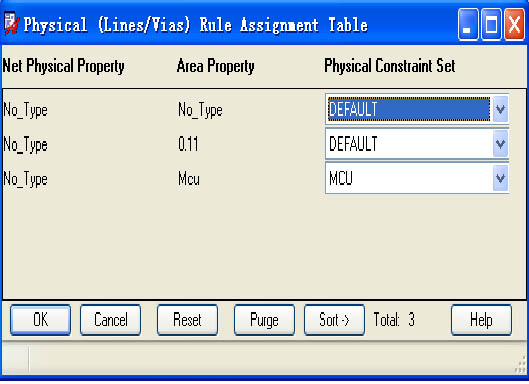

我是这么设置的,但是执行的还是通用的规则.

下面是我设置的那个区域的属性

LISTING: 1 element(s)             < SHAPE >                    class         BOARD GEOMETRY       subclass      CONSTRAINT_AREA  Shape is unfilled  Area:  4.10040  (sq cm)Exterior boundary:   segment:xy (106.2000 108.3000) xy (106.2000 88.2000) width (0.0000)   segment:xy (106.2000 88.2000) xy (126.6000 88.2000) width (0.0000)   segment:xy (126.6000 88.2000) xy (126.6000 108.3000) width (0.0000)   segment:xy (126.6000 108.3000) xy (106.2000 108.3000) width (0.0000)   Properties attached to shape    NET_PHYSICAL_TYPE = MCU

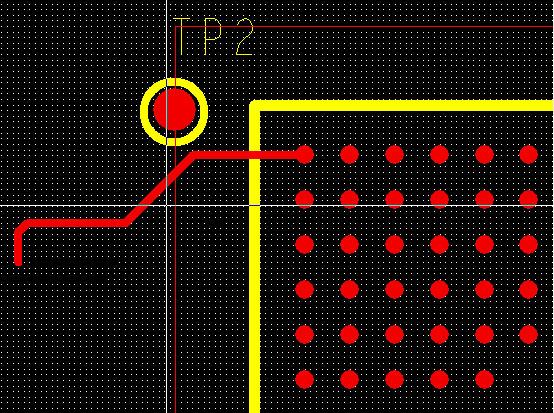

下面是我画线

下面是我画的线的属性

LISTING: 1 element(s)          < CONNECT LINE >                 class         ETCH       subclass      TOP  part of net name:  INTBOOT  CLINE length:      6.2094 MM  Net path length:        23.06 MM  Total manhattan length: 16.8506 MM  Percent manhattan:      136.85%  Connections:    SYMBOL PIN at xy (108.5003 105.9997) segment:xy (103.4000 104.1000) xy (103.4000 104.6500) width (0.1500) segment:xy (103.4000 104.6500) xy (103.5500 104.8000) width (0.1500) segment:xy (103.5500 104.8000) xy (105.3000 104.8000) width (0.1500) segment:xy (105.3000 104.8000) xy (106.4997 105.9997) width (0.1500) segment:xy (106.4997 105.9997) xy (108.5003 105.9997) width (0.1500)

还是0.15MM不是我想要的0.11MM

兄弟姐妹们,帮我一下噻.看看是哪个地方有问题.

步骤是对的，你现在把SHAPE拿起来，再放下去试试。要打开DRC。

我试了,就是这里的问题,谢谢你,SJ0902

7楼的回答的很好！
