求救：ORCAD里无法自动增加off-page connector
时间：10-02
整理：3721RD
点击：

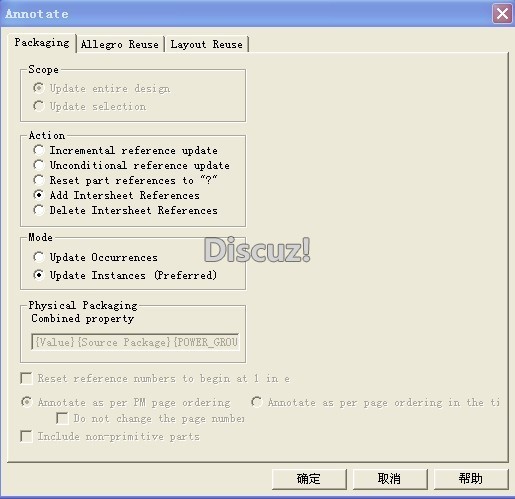

执行Tools/Annotate..
选择"Add Intersheet References”
勾选"Place On Off Page Connectors"
OK之后，提示以下信息
==Adding=InterSheet=References=========================
WARNING #18001 Off Page Connector BSPI_MISO on Page 02 MCU has no Intersheet References.
WARNING #18001 Off Page Connector BSPI_CLK on Page 02 MCU has no Intersheet References.
WARNING #18001 Off Page Connector BMC513-RX on Page 02 MCU has no Intersheet References.
==Adding=InterSheet=References=Complete================
原理图上没有自动增加分页转接符号，请问这是什么问题?
选择"Add Intersheet References”
勾选"Place On Off Page Connectors"
OK之后，提示以下信息
==Adding=InterSheet=References=========================
WARNING #18001 Off Page Connector BSPI_MISO on Page 02 MCU has no Intersheet References.
WARNING #18001 Off Page Connector BSPI_CLK on Page 02 MCU has no Intersheet References.
WARNING #18001 Off Page Connector BMC513-RX on Page 02 MCU has no Intersheet References.
==Adding=InterSheet=References=Complete================
原理图上没有自动增加分页转接符号，请问这是什么问题?
不放页码数同样有连接性,此问题前也碰到过,没办法解决.
