PADS Logic 問題
时间：10-02
整理：3721RD
点击：
高手幫我看看是什么問題.
哪部分會出錯?
還有論壇中哪里有 Logic的資料?
謝謝~
1, 做完 part decal后系統提示:
Error: Signal pin number invalid - Pin number 1 already exists on Gate A, Logical pin 1.
Error: Signal pin number invalid - Pin number 2 already exists on Gate A, Logical pin 2.

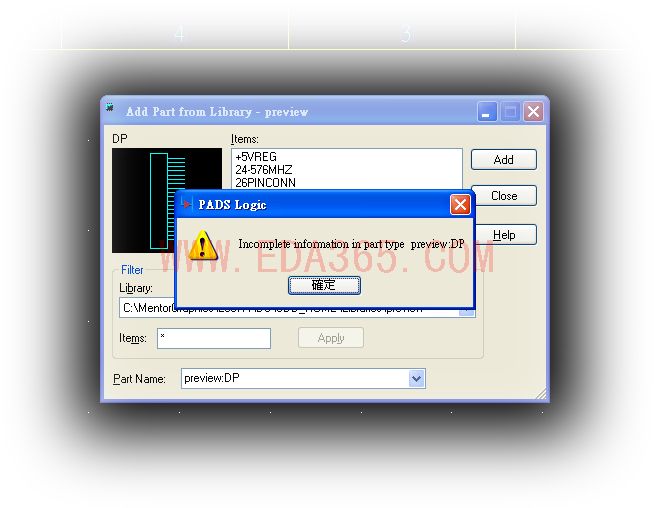

2, 調用part時顯示:
file:///C:/Documents%20and%20Settings/sammy.WIESON/%E6%A1%8C%E9%9D%A2/1.jpg
哪部分會出錯?
還有論壇中哪里有 Logic的資料?
謝謝~
1, 做完 part decal后系統提示:
Error: Signal pin number invalid - Pin number 1 already exists on Gate A, Logical pin 1.
Error: Signal pin number invalid - Pin number 2 already exists on Gate A, Logical pin 2.
2, 調用part時顯示:
file:///C:/Documents%20and%20Settings/sammy.WIESON/%E6%A1%8C%E9%9D%A2/1.jpg
