How to see the far fields in EMDS?

Hi friends,

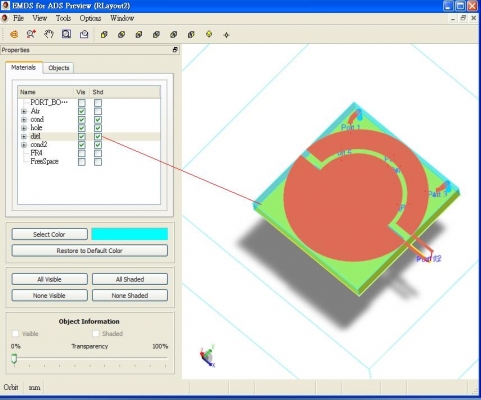

I want to design antenna using ADS EMDS.and my antenna includes capcitors,diode and copper.How can i see the far field?whether i can use co-simulation function?
Thanks,

You can use the co-simulation. once you satisfactory using the complete simulation re-run the structure for far-field results in EMDS.

Thanks

Thanks all

Infect you don?t need to do perform co-simulation for FAR Field calculation in EMDS.

1. Just simulate your project in emds
2. Select EMDS>Post Processing>Compute Far Field

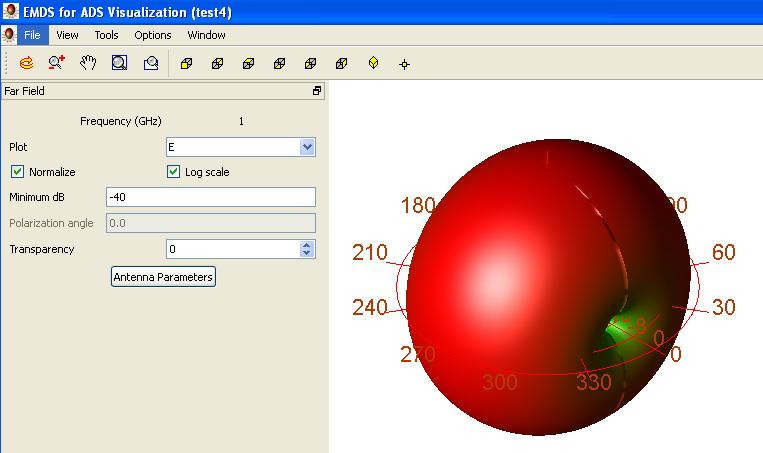

3. Now select EMDS>Post Processing>Visualization
4. In visualization turn on "Far Field? tab
