gsm power levels

时间:04-08 整理:3721RD 点击:
Hi everybody, I have an question regarding GSM phone power outputs.

From what I can understand a typical GSM900 phone radiates at a maximum of 2Watt and because of the TDMA usage the average maximum power level is 250mW.

For a GSM1800 phone the power levels are the half of the above (1W max and 0.125W average)

What I need to know is:

Are the above values the peak (Amplitude) values or the RMS values?

Thank you ever so much

In GSM only peak power is measured.

Can you PLEASE direct me to any source that validates that? A book, a paper, an article anything PLZ

My advisor insists on the RMS thing and I need hard evidence to make him change his mind...

Thanks a million

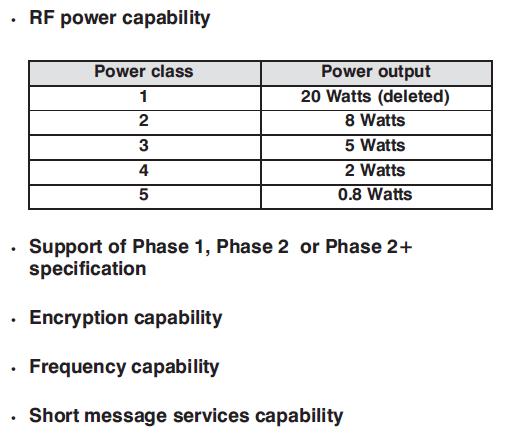

see this



and the attached file

You must see at www.etsi.org
I adjunt little PDF about GSM RF power.

Thank you for your help everyone. I think I got it now

GSM uses GMSK so RMS power is the better sense.
How ever the power class is different from the comparison of peak and RMS

In GSM (GMSK modulation) only peak power is measured.
The power measurement is done for more than 100 bursts, and finally is done an average of the results.

this is a new note for me.
thank you too much
