Re: how vs/8 is coming?
时间：04-08
整理：3721RD
点击：

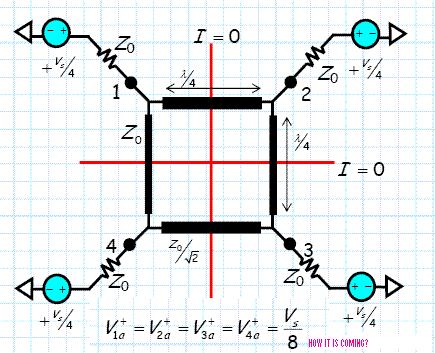

IN THIS HOW V1= VS/8 ? IS COMING ANY ONE PLEASE EXPLAIN.
Added after 4 hours 53 minutes:
Pictures are not clear, can I ask for upload once again?
hi with this i attached the file page no 3/14 i got this doubt
Exitation is Vs/4 with internal impedance of Zo.
Load is Zo.
V1 is nothing but voltage across Zo.
so the voltage across Zo will be Vs/8.
what about the Zo/√2 arm?
