need suggestion for building a Attenuator

时间:04-07 整理:3721RD 点击:
Hi,
i want to build a Broad-band active variable attenuator from this tutorial. http://www.odyseus.nildram.co.uk/RFM...Attenuator.pdf. Here they used a MACOM MA4P202 PIN diode in chip form for building this attenuator. I want to know If I order this PIN-diode prom MACOM, will I get the PIN-diode only in the chip form or will I get a package? because I think if it is not possible to have the PIN-diode in chip form then I have to change the design of the attenuator because of the package. Any suggestion guys? HELP !!

It is normal for some component in chip, and the same component in package.
You can select from the datasheet of the vendor.

Raw Chip devices are not available for public, but you may find packaged version of this diode..

In this tutorial at page 10 it is written "a MaCom MA4P202 PIN diode was chosen as it’s operating frequency range is

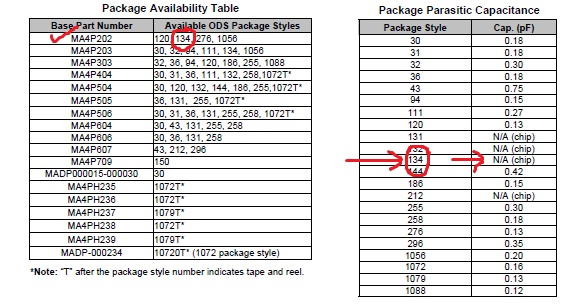

specified as 50MHz to 18GHz and is available in chip form". While I am searching for the datasheet of this diode, got a "Packaged PIN Diodes" pdf in the MACOM site.

Is this means that this PIN-diode is available in chip form? Can anybody ensure me? :(
