hi i need equation for main line loss. as well as coupling loss.
what sort of main line ? what frequency ?

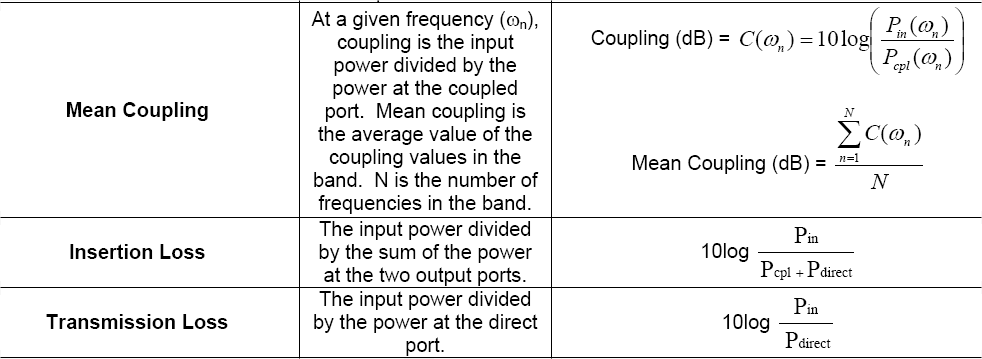

Main Line Loss: The input power divided by the power at the direct port. (10*lg(pin/P_direct))
Coupling: At a given frequency (wn), coupling is the input power divided by the power at the coupled port. Mean coupling is the average value of the coupling values in the band. N is the number of frequencies in the band.
