Inquiry: pnoise simulation results of NF for a downconversion mixer

时间:04-06 整理:3721RD 点击:

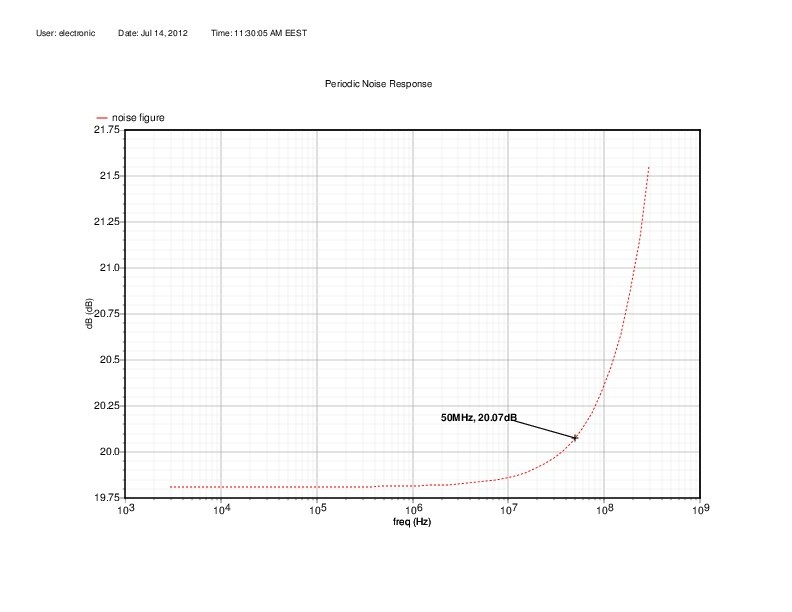

I'm simulation the NF of a down conversion mixer using pss&pnoise simulations. The attached graph is the output of the simulation. The shape of the curve is very strange from what I'had expected. I was expecting the mirror of this graph..Am I right or I've missed something that makes this results logic?

any help is appreciated :)
