uwb bandwidth performance
need ur help
regrds
sadamkhan
your file is not attached,attach it again
regards
elchiquito
here my modl, if u set the lower limit of operating range frm 1 Ghz and upper limit either 13 or 14 GHz,then it will gr8 pleasure fr me
this antenna i am using in my final year prjct i need operating range frm 1-abov 12 GHz but results (return loss ) is frm 3.4 GHz,ur hlp can release me frm gr8 tension
Don't understand one thing,all you need to do is just change the frequency range in the analysis setup from 1 to 13 GHz. I don't see what's so difficult about this.
If you had done the design all by yourself, you would have at least have the basic understanding of changing this small parameter.
Anyway,i'm helping you to do this now...
I won't send u the UWB file because i think this is something of a small issue.

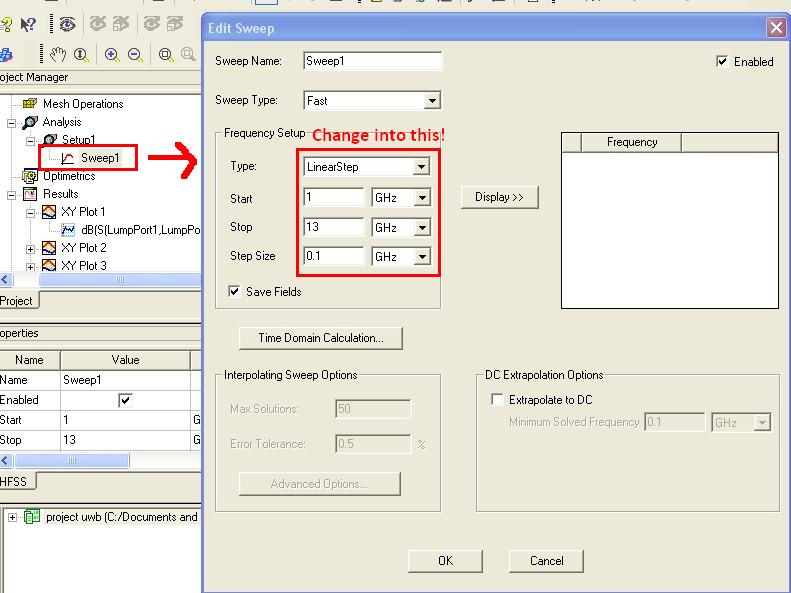

I have attached 2 images , where you need to change the settings.
Please refer to image below, just change into this and you are done.

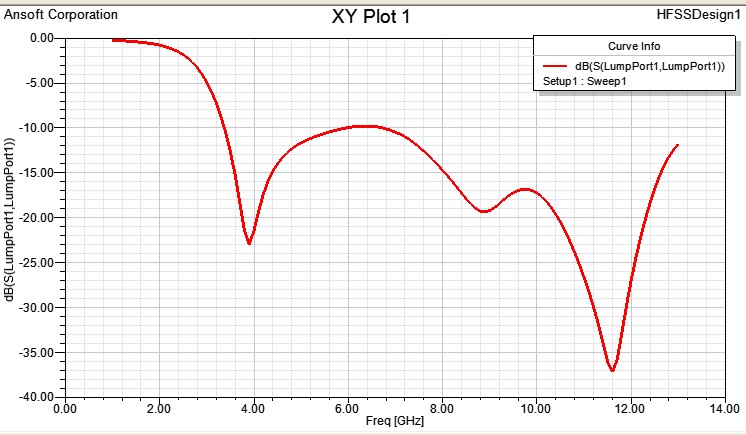

This is one of the example, that i compiled from your results and it shows simulation from 0 to 13GHz.
the size of your is lower than your idea , so u increase size of antenna to achieve less frequency
u didnt get my point ,as u see in the image that u upload the return loss is less than -10 dB from 3.4 GHz to 13 GHz, but i need it should be less than -10 dB from 1 to 13 Ghz
i have looked into your file, the actual way to lower the frequency level is to increase the size of the patch, but the corners that have been cut into the patch are cut in a complex manner,which will make it even difficult to reiterate the design in few steps. unfortunately i wont be able to redo it for you.
but try changing the size of the patch and then cur your corners likewise and then simulate the structure
Regards
Elchiquito
i want to achieve operating range from 1-13 Ghz,i tried but lower operating range instead from 1 ghz it is from 3.4 GHz,help me ,i wil be ur gr8 kindness
i said u should increase the size of antenna
i increase the size but the results are even bad than previous
increasing the size is not straightforward. you have to find the lowest mode of propagation and then set the size accordingly.which is the resonance mode of the lowest frequency you are expecting.
Hope you find some help.
Regards
Elchiquito
so can u explain your idea and show us how u able do that?
hi
see this paper u will understand your size very small than your request
STUDY OF AN EXTREMELY WIDEBAND MONOPOLE
ANTENNA WITH TRIPLE BAND-NOTCHED CHARACTERISTICS
PIER 2012
thnkx vry mch for help, if u have any related simulated antenna(fr-4 sub) whose operating range start from 0.5 ghz to above 5 ghz ,share it
hi elchiquito..
for this antenna u said that one has to find lowest mode of propagation. Does that mean that the antenna should be designed according to the operating frequency which should be kept 3 ghz in this case? because the band achieved is from 3.4 to 13 ghz..do we have to put the frequency of 3 ghz in formula to calculate the length and width of the patch?and then cut the patches in the same proportion?
thank you..:
i checked your simulation but they have many problem in design
