How to export the substract information to sonnet from technology file or cadence?

Dear all, I have a question about the technology of the TSMC90nm, I want to know is there a good way to export the substract information to sonnet.
the number of tsmc90nm technology's layer is more than 40, is there any good idea to export the layers or substract information from cadence or the technology file To sonnet ,and this can aviod to build so much layer in sonnet

Thank you in advance~

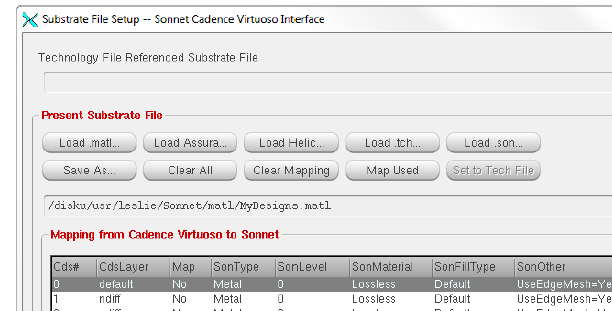

Yes, in Sonnet's Cadence interface you can import existing technology files from different formats, for example tch or Assura procfile.

After import, Sonnet stores this in Sonnet"s matl file format. I have created the "m/matl" editor to work with Sonnet matl files, visualize the stackup and also simplify it by merging layers. The "m/matl" editor is available for download here: Dr. Mühlhaus Consulting & Software GmbH ? Material file utility

Hi volker_muehlhaus, thanks for your reply!
I can't find the cadence interface or sonnet(linux version)
would you like to tell me the link ?
thanks again!

Integration with Cadence Virtuoso - Sonnet Software

What Sonnet version are you using?

The version is 13.52 ,install in windows. I just saw the interface about ADS interface from "Admin",but no cadence.
Do I need to install other version?

---------- Post added at 15:02 ---------- Previous post was at 13:41 ----------

Hi volker_muehlhaus,I had found the interface file in the sonnet install derector,Thank you very much!

---------- Post added at 15:07 ---------- Previous post was at 15:02 ----------

Hi volker_muehlhaus,I had found the interface file in the sonnet install derector,Thank you very much!

Fine!

The documentation for the Cadence interface is in the "translators.pdf" manual.
You can open that from the Sonnet Taskbar > Manuals.

If you are still using Sonnet 13.52, maybe you shoudl upgrade to 13.54.
There are some important bugfixes related to Cadence/Linux/RFIC
Dr. Mühlhaus Consulting & Software GmbH ? Sonnet 13.54 now available

V13.56 is now available and we've added many new behind the scenes enhancements to be able to handle much larger geometries, especially when it comes to pin to port recognition. We've also included many new scripts for automation with merging ground planes, changing the via drawing layer for MIM caps to a temporary drawing layer for mapping purposes, deleting unwanted polygons not on the "drawing" purpose, and much, much more.

Mike

Hi all....

Is this cadence interface is also available with sonnet lite (free download). If can, where can i find the Linux version of sonnet? tq..

Hi nazi_79,

Unfortunately, the cadence interface is only available for Sonnet professional.

Mike
