about VOC resonant match
时间:04-06
整理:3721RD
点击:

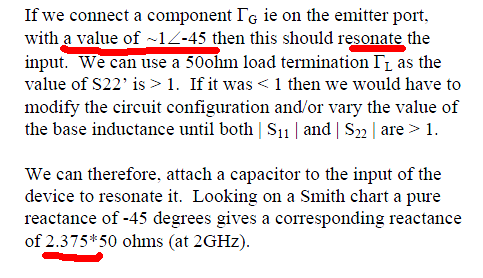

There is anther problem, the picture show above is a vco,and he said that reflection coefficient is -45°

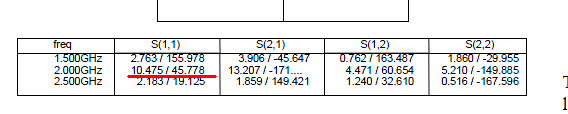

while the s11 is 45°,it resonant.
but in my view,the im(Zin) should be equal to im(Zs),
and in this case,the im(Zin)=2.375, im(stoz(s11))=7.8. it not equal. why?
