HFSS implementatio of corporate feed network
时间：04-06
整理：3721RD
点击：
Hi all,

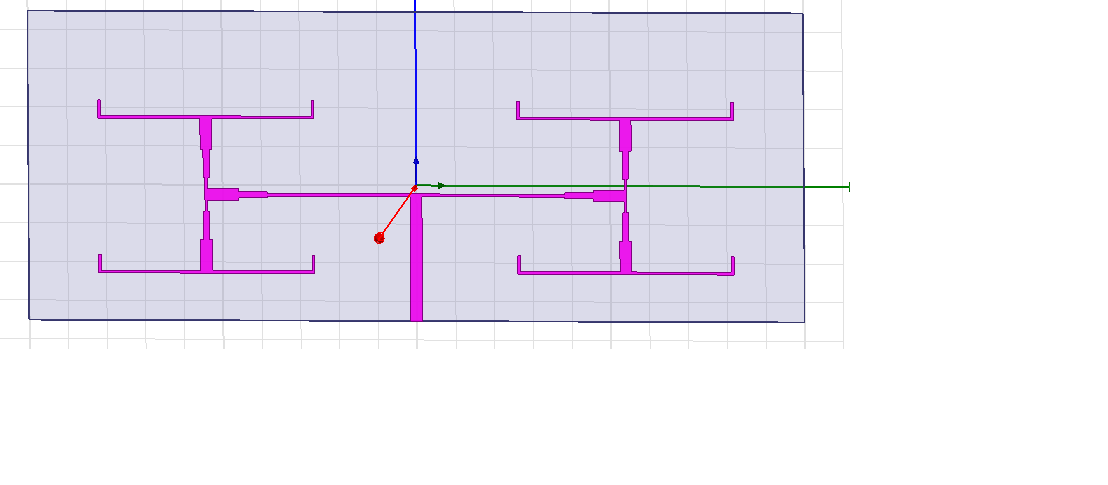

I am a beginner to the works on antenna.I need to design an array of 8 patches.I want to implement it by corporate feed network structure,but dint get very good material on it.I designed 1 network on my own,can you please tell me whether the structure is ok or not?the microstrip line sections are of 3 widths,for 50,70.71 and 100 ohm lines.70.71 is for quaterwave transformer.I am attaching the network pic herewith.the input is given by a 50 ohm liner which splits into 100 ohm lines.then the impedance increased with QW to 50ohm.which agn splits into couple of 100 ohms.the processgoes like this.
Please help,thanks in advance
I am a beginner to the works on antenna.I need to design an array of 8 patches.I want to implement it by corporate feed network structure,but dint get very good material on it.I designed 1 network on my own,can you please tell me whether the structure is ok or not?the microstrip line sections are of 3 widths,for 50,70.71 and 100 ohm lines.70.71 is for quaterwave transformer.I am attaching the network pic herewith.the input is given by a 50 ohm liner which splits into 100 ohm lines.then the impedance increased with QW to 50ohm.which agn splits into couple of 100 ohms.the processgoes like this.
Please help,thanks in advance
