Wifi out of range. Options?
I'm only 1st year EE, so I'm looking for advice. I can follow a schematic, but lack theory of operation that many of you have.
Options?
There may be a high-gain directional antenna available, designed for your operating frequency. Here in Chaska, Minnesota, we have community wi-fi. The antenna is a S45 add-on component, when we need to boost the signal.
If you're lucky you'll have line of sight to a university network hub which is positioned near a window.
Or, try to find out if the university can provide for you to get on a VPN (virtual private network), via your normal internet hookup.
Thanks BradtheRad. This is located in Mankato, MN
*There is a fence behind my house that runs up a ravine directly to campus.
I know you can tether off a smart phone, but I'm rocking a flip yet & I'm near positive my mate only has 3G ...if that's an issue?
you seek the cantenna!
http://www.youtube.com/watch?v=U6LkQ53vRJI
See, this is where I get stupid. I didn't know the "cantenna" could be used on the receiving end. I was under the impression that you could only use it to direct the output signal.
Like,
You get X output from the router in every direction (x,y,z axis). So if you direct it, you're getting the same output but within a much smaller area. Inverse sq law may apply here.
I don't understand how antenna gain works on the input side.

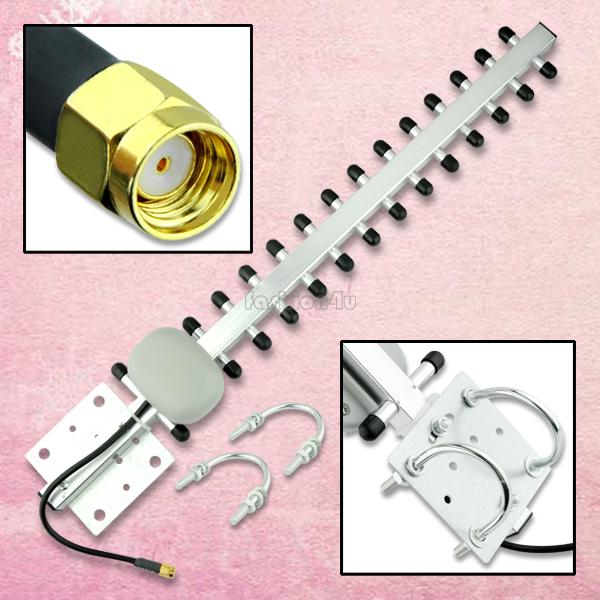

Maybe a yagi antenna can help assuming your wifi accepts RP-SMA plug
Gain : 20 dBi
Vertical lobe width : 23°
Horizon lobe width : 26°
You can get in in ebay for about S10
