Problem with charactersics of Wilkinson Power Divider

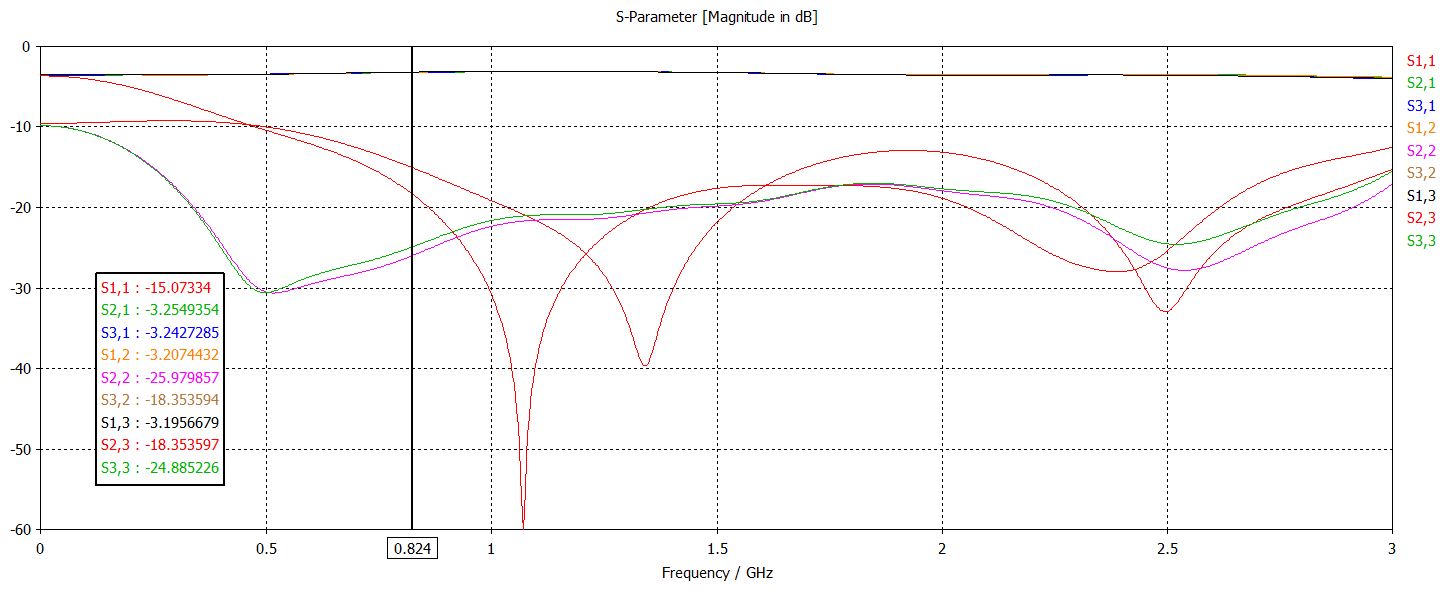

Recently I've calculated WPD parameters. Then it was obtained simulation results of schematic circuit. Now I'm trying to create the structure in field representation, but simulation results are different. What can be the reason?
please have a look on attached pictures.
I think output lines make the influence. How to reduce it?
Try to place port 2 and port 3 on the PCB, opposite to port 1, and making their traces shorter.
I don't know the topology you used. Usually the input and the two outputs are on the opposite sides of the board, so the two rings are not internal to the structure.
How did you model in you circuit the coupling between loops and external traces ?
However I don't think the problem is due to the input/output lines; I presume their width is calculated to have 50 ohm impedance.
I need port 2 and 3 exactly in this positions.
I didn't take it into account, that's why such unexpected characteristics were obtained.
You are right, width is calculated to 50ohm impedance.
I tried different length of the external traces and mentioned that s-parameters depend on it.
If I increase length in x-axis then it occures bigger attenuation of S22, S33 in lower frequency band. Increasing of the length in y axis leads to increasing attenuation of S11 in lower band, but S22, S33 in this case become equal in both bandwidth.
yes the lines for the two outputs, closest to the resistor, are very close to the lines of the splitter. There is probably some coupling. Also you did not chamfer those output line right angle bends. Spread things out!
After some manipulations with this outputs, it was obtained better characteristics, but not ideal (which was in schematic simulation). How to calculate this angle bends in the right way? What I found in Pozar book is only that the length of chamfered bends (A) usually =1.8W.
Some explanation here:
http://www.microwaves101.com/encyclo...ered_bends.cfm
Albbg, thank you
