Work point of Distributed Amplifier design
时间:04-04
整理:3721RD
点击:
I am new into design of broadband Low noise distributed amplifier MMIC using pHEMT device. I am unable to design the dc biasing scheme.
The DA is supposed to be 2G-20G with gain to be near 6.4dB.

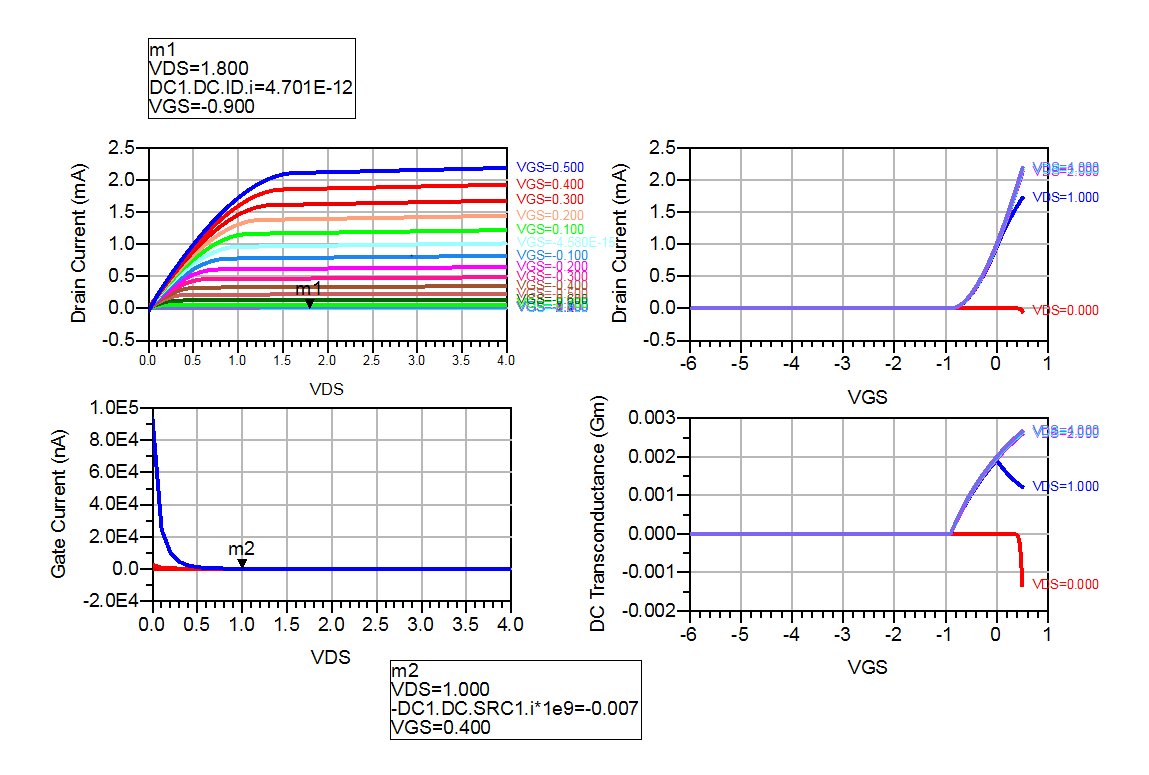

I have curves of ID-VDS, which point should me use.
if there are tutorials would be very useful.
Thank you guys.!
The DA is supposed to be 2G-20G with gain to be near 6.4dB.
I have curves of ID-VDS, which point should me use.
if there are tutorials would be very useful.
Thank you guys.!
hi,
Prms = Vds x Ids
Prms = RMS RF output power.
