Hello
I am designing a dual polarized coaxial to circular with an inner ring and a outer ring supposed to work at two different frequencies.
the ports are combined two by two (+ and there might by a phase sift.
I dont know how to run the simulation nor the port combining thing.
Please Help!
The inner ring excites the TE11 mode and the outer ring the TE21 mode; there is also something about a phase shift and all the ports not running at the same time.
Your hel would be really appreciated.
best,
I am designing a dual polarized coaxial to circular with an inner ring and a outer ring supposed to work at two different frequencies.
the ports are combined two by two (+ and there might by a phase sift.
I dont know how to run the simulation nor the port combining thing.
Please Help!
Hi goroks, what software are you using?
Hello!
I am using CST Studio as simulation tool.
best,

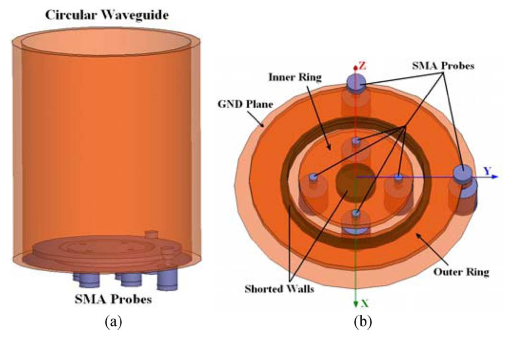

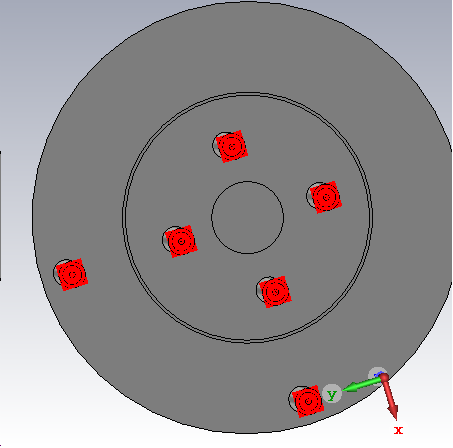

This is the structure made with CST Studio.
The inner ring excites the TE11 mode and the outer ring the TE21 mode; there is also something about a phase shift and all the ports not running at the same time.
Your hel would be really appreciated.
best,
