Hello,
I know there are already many posts on the same topic yet I am unable to find my answer in all those forums hence posting my query here.
I am trying to design a filter in schematic and Layout formats. This is example 8.5 of David M. Pozar book. While I am trying to design it schematically, I have calculated both W and L using LineCalc tool available in ADS, but I am unable to find out how to use the length of the MLIN as in many examples I have seen that designer was not using the length that was calculated using LineCalc tool.

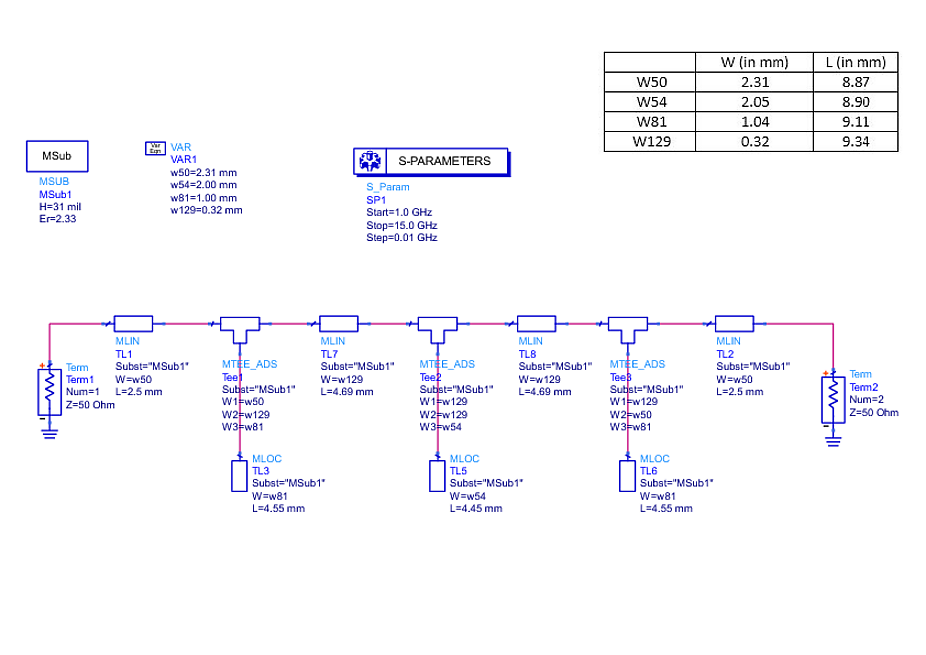

For Example, in the attached image, You can see the values obtained from LineCalc tool are tabulated in the North-East corner while if you see, the length used for w50 is 2.5mm (instead of 8.87), for w54 it is 4.45 (instead of 8.90) and so on. Can you explain how are they using this length and getting results?
I know there are already many posts on the same topic yet I am unable to find my answer in all those forums hence posting my query here.
I am trying to design a filter in schematic and Layout formats. This is example 8.5 of David M. Pozar book. While I am trying to design it schematically, I have calculated both W and L using LineCalc tool available in ADS, but I am unable to find out how to use the length of the MLIN as in many examples I have seen that designer was not using the length that was calculated using LineCalc tool.
For Example, in the attached image, You can see the values obtained from LineCalc tool are tabulated in the North-East corner while if you see, the length used for w50 is 2.5mm (instead of 8.87), for w54 it is 4.45 (instead of 8.90) and so on. Can you explain how are they using this length and getting results?
