Help me in ADS (Error Message during simulation)

时间:04-04 整理:3721RD 点击:
Dear all,
I designing RF LNA and I want to simulate ,

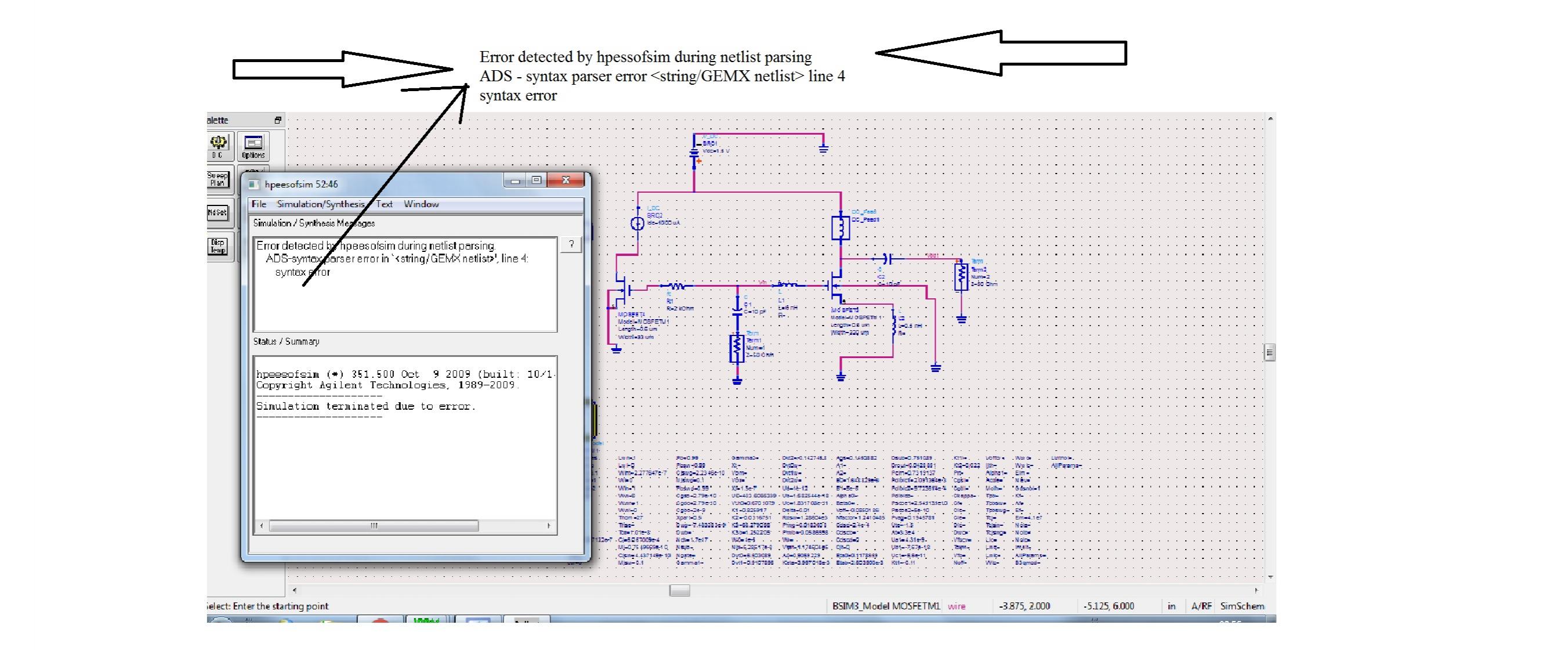

but I have a problem as shown in attached file.
How can I know line4? where is line 4?
or any line that has the problem?
thanks in advance

Check the net-list that is found under the project directory.
I don't know the net-list but a current source and voltage source shoulnd't be connected as done.
Current source has to have a separate GND connection, voltage source has as well.Otherwise the simulator may create convergence errors.

Dear BigBoss ,
Many thanks for your reply,
about the design I take the c

ircuit from PDF I attached the pic plz see it

From the ADS schematic window: Simulate > Generate Netlist


Dear,
I attached you what I got from the " Simulate > Generate Netlist "
Please, how can I get line 9 or line 4 or ...
I need to know where this line to now the error in my circuit.
knetlist.pdf

thanks



When ADS opens the file in the text editor , start counting the lines.
In your PDF, there are extra line breaks for the long lines, so this can't be used.

It would be helpful if you learn to post readable images. I also notice that the posted netlist (besides line break problems) is for a different circuit, using different part designators than the schematics.
