NOr flash 的A-1是干嘛用的?怎么和d15复用了?

时间:10-02 整理:3721RD 点击:

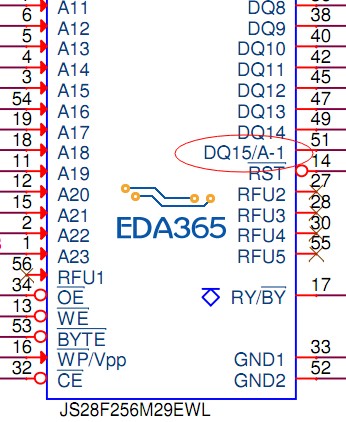

去看看 JS28F256M29EWL 的規格書說明!

DQ15/A-1
When BYTE# is HIGH, this pin behaves as a data I/O pin, DQ[14:8]. When BYTE# is LOW, this pin behaves as an address pin; DQ15/A-1 LOW selects the LSB of the word on the other addresses, DQ15/A-1 HIGH selects the MSB. Throughout the text, consider references to data I/O to include this pin when BYTE# is HIGH and consider references to address inputs to include this pin when BYTE# is LOW, except when stated explicitly otherwise.

手伸出来,我给你穿衣服。
